The type of mounting required depends on the needs and location of the luminaire. While pendant, wall, recessed, and surface-mounted luminaires all follow the same mounting techniques, they all have their own specifications and applications.
When purchasing LED panel luminaires and fixtures, it is important to know the specific type of lighting and the different types of mountings available.
With LED panel lights, you can easily achieve a coordinated and fresh, and modern look. Panel lights can be mounted on ceilings, walls, and mounting surfaces. Surface mounted LED panel lights and LED recessed panel lights are two typical types of LED panel lights.

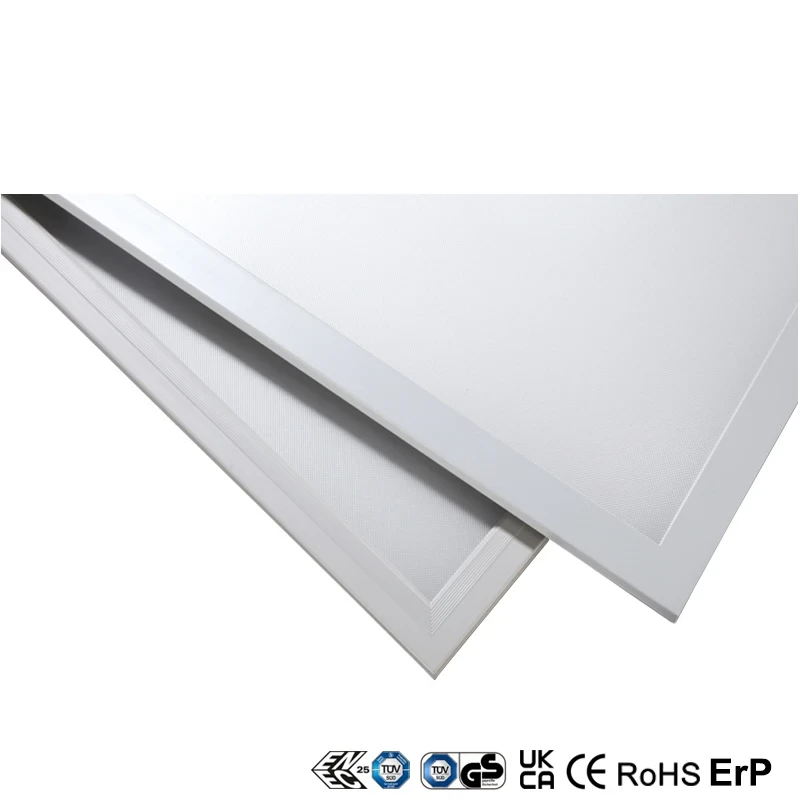

Surface Mounted LED Panel Light
Edge-lit LED Panel Light UGR17 30W 130lm/w 600x600
Surface-mounted LED panel lights sit on top of a flat surface, such as a flat part of a ceiling, and protrude from the surface. They are installed by screwing the bracket to the mounting surface and attaching the panel to the bracket, so there is no need to cut out mounting holes.
Surface mount-type lighting comes in a variety of shapes and sizes and is ideal for environments where there is small space between structural and drop ceilings or where the ceiling is exposed. Some LED surface panel lights in industrial lighting can be attached to the ceiling by static fixtures or chains.
| Input Voltage : | AC200V-240V , 50/60Hz |
| Dimension : | 595x595x9mm |
| LED Chip : | San'an / Philips / Osram (option) |
| Norminal Power : | 30W , SMD4014 |
| Luminous Flux (LM) : | 130lm/w |
| CCT : | 4000K / 6500K (option) |
| CRI : | Ra>80 |
| Driver : | Lifud / Philips / Boke / AGT / Osram (option) |
| Power Factor : | PF>0.95 |
| UGR(Unified Glare Rating) : | UGR17 |
| Materials : | Aluminum frame , PMMA LGP |
| IP Rated : | IP40 |
| Lifetime : | 50000H |
| Warranty : | 5 years |
| Working Ambient Temp. : | -20~+40℃ |
| Working Ambient Humidity : | 10%~90% |
| Mounting : | Recessed , Suspending , Surface mounted , Spring clips , T-bar |
| Dimmable : | On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
| Certificate : | ENEC , TUV-GS , UKCA , CE , RoHS , ERP |

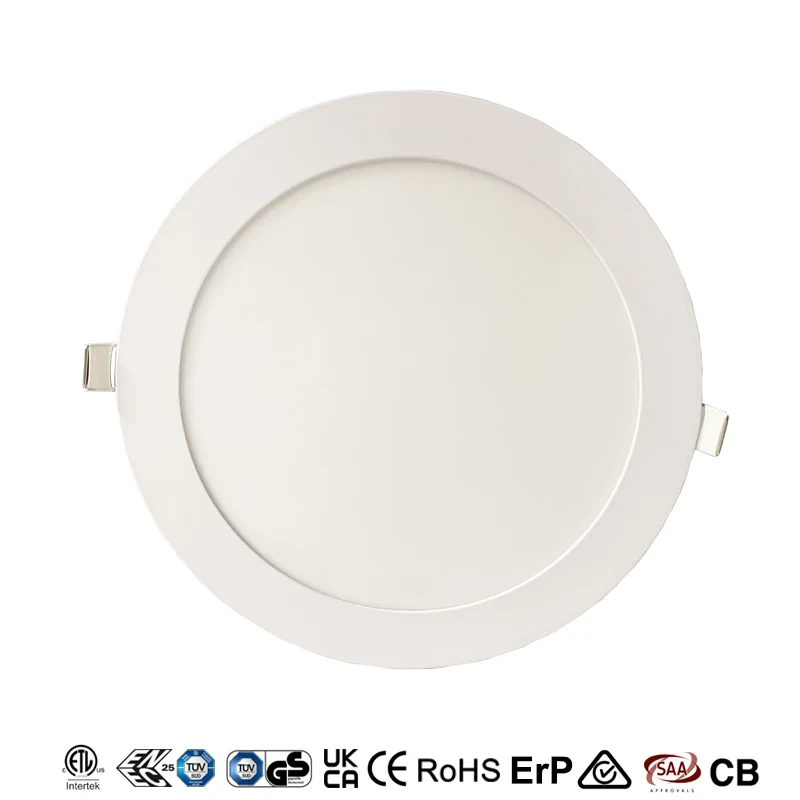

Recessed LED Panel Light
LED recessed panel lights, also known as downlights, are a type of lighting fixture that is mounted on the ceiling or wall. The housing and wire assembly are concealed and the recessed LED panel light is designed to sit flush with the surface for a smooth and polished finish.
Recessed lights can be installed in the ceiling of a room and provide a lot of light without taking up floor and table space. Hanging fixtures in rooms with low ceilings will make the room appear smaller. Recessed slim LED panel lights are a good choice in low ceilings because they do not protrude down from the ceiling.
| Input Voltage : | AC200V-240V , 50/60Hz |
| Dimension : | Φ225mm , Cut out Φ205mm |
| LED Chip : | San'an / Philips / Osram (option) |
| Norminal Power : | 18W |
| Luminous Flux (LM) : | 80lm/w |
| CCT : | 3000K / 4000K / 6500K (option) |
| CRI : | Ra>80 , >90 , >95 , full spectrum (option) |
| Driver : | Lifud / Philips / Boke / AGT / Osram (option) |
| Power Factor : | PF>0.95 |
| UGR(Unified Glare Rating) : | 16 , 17 , <19 , <23 (option) |
| Materials : | Aluminum frame , PMMA LGP |
| IP Rating : | IP40 (IP54 option) |
| Lifetime : | 50000H |
| Warranty : | 5 years |
| Working Ambient Temp. : | -20~+40℃ |
| Working Ambient Humidity : | 10%~90% |
| Mounting : | Recessed |
| Dimmable : | On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
| Certificate : | ENEC , TUV-GS , UKCA , CE , RoHS , CB , RCM , SAA , ETL |
Conclusion
As a LED panel light supplier in China, whether round led panel light or square led panel light, whether you are looking for panel lights for commercial or industrial use, Sunsylux has a wide variety of panel lighting for you to choose from.
Browse our products in Sunsylux. Here you will always find the perfect LED panel light.
