- Super flat design
- Advanced technology SMD 2835 LED
- Light efficiency 120lm/w output
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0
Product Details

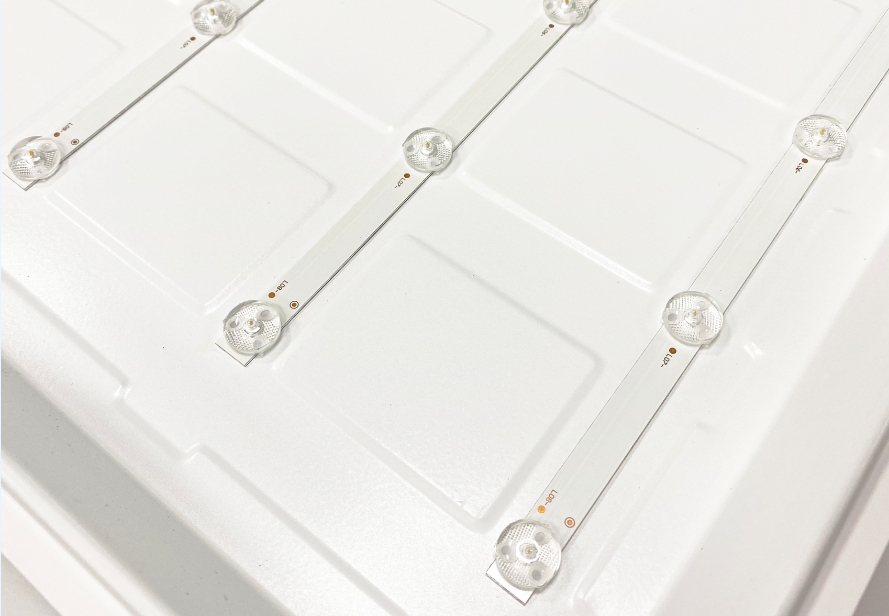

Large power and size 1200x600mm back-lit LED panel light . illuminate directly . Super flat . long lifespan 50000H L90B10 , 5-year warranty , energy saving and reliable . Without light guide plate(LGP) and won’t get yellowing and haven’t spots . Good heat dissipation , low maintenance , superior quality . Light efficiency 120lm/w output , high brightness 7200lm , super bright LEDs , thanks to the high quality San’an 2835 LED chip . High power factor over 0.95 driver , flicker free . White powder-coating clean finished aluminum frame , solid back cover . Matching most types of ceiling grids , suitable for recessed , surface mounting or suspending installation with optional accessories . Producing the perfectly smooth area of lights . Back-lit panel light is lightweight , easy and quick installation . Very popular for the European market , owns the ENEC , CE , TUV-GS , UKCA , ROHS , ErP certificate . Meets the Blue Light Hazard Regulation RG0 . More comfort lights for the office , meeting room , retail , shop , school , reception areas , shopping mall , supermarket , and other commercial areas .
Sample is available to test , and fast delivery within 15 days for the bulk orders .
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|
Dimension : |
1195x595x30mm |
| LED Chip : | San'an / Philips / Osram (option) |
|
Norminal Power : |
60W |
|
Luminous Flux (LM) : |
120lm/w |
|
CCT : |
3000K / 4000K / 5000K / 6500K (option) |
|
CRI : |
Ra>80 |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<23 |
|
Materials : |
Aluminum frame , PMMA lens |
|
IP Rating : |
IP40 |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ErP |
Package
Option 1 : Carton Sizes : 126.5x66.5x34cm , 5units/ctn. (contain inner box)
Option 2 : Carton Sizes : 126x66x23cm , 6units/ctn. ( Industry package , not contain the inner box , save the CBM )

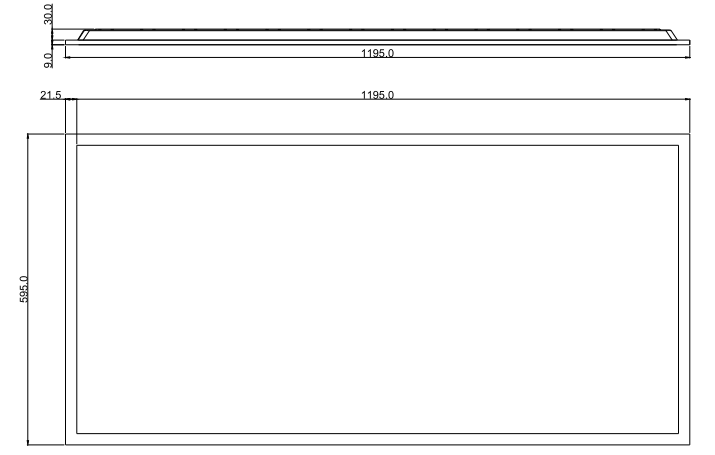

Dimensions
Ultra slim and flat design , with only 30mm overall height

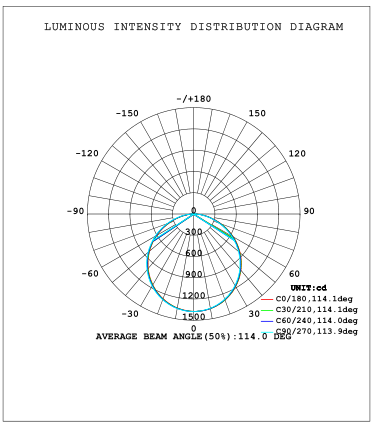

Photometric
PMMA Lens , perfect optical design
Applications
Office , School , Education areas , Meeting room , Shop , Retail , Super market , Corridor , etc .
