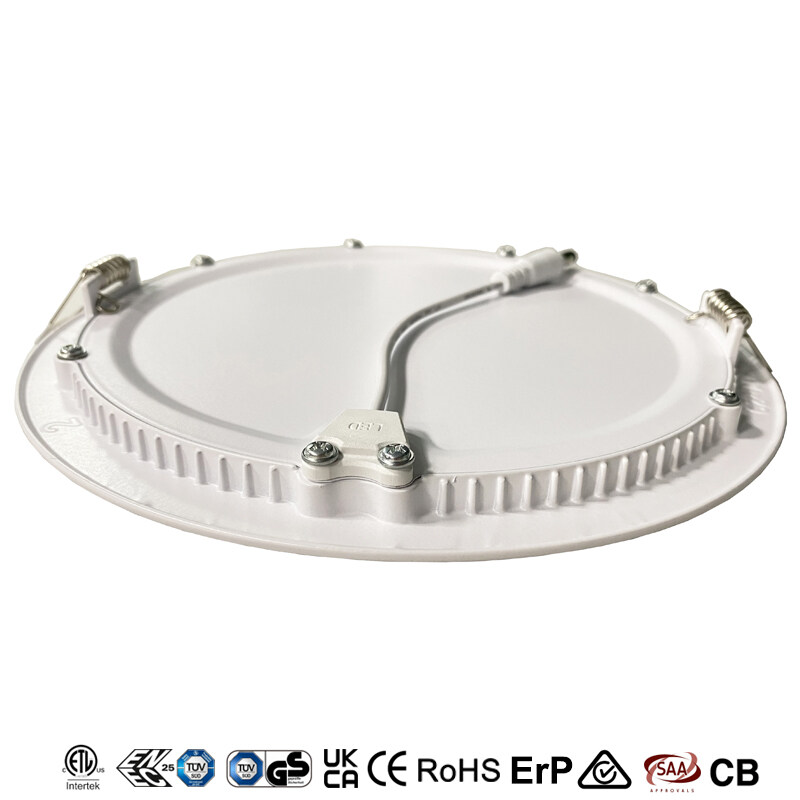

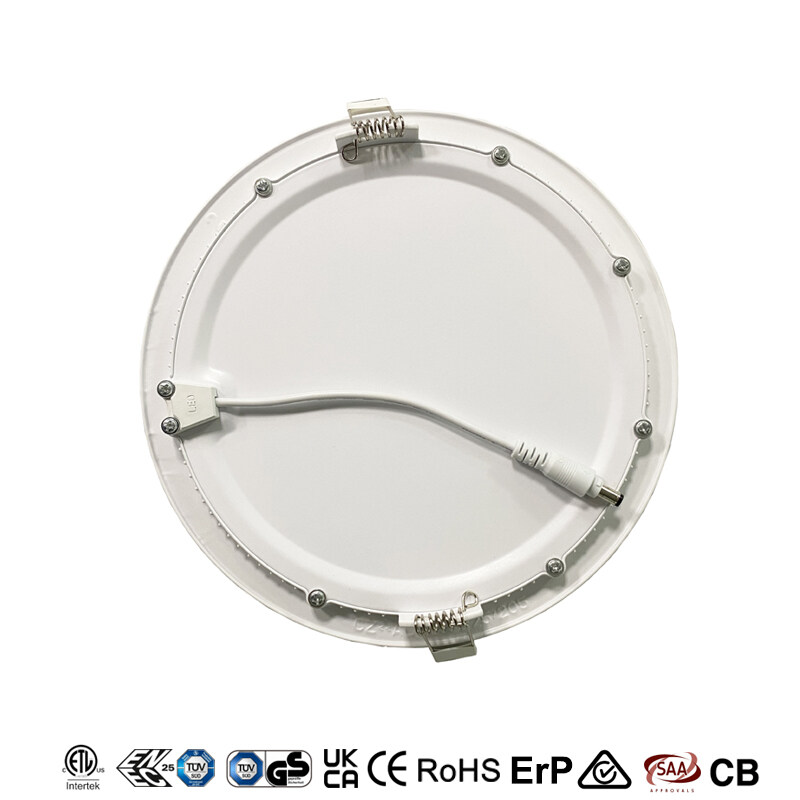

Round LED Panel 24W D300mm

Model: S-R300

- Super slim and flat design
- Aluminum frame in white powder-coating finish
- High brightness
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0

Product Details

The ultra slim round LED panel light adopt the advanced LED technology , saving 50% energy, high brightness, uniform surface lighting effect . Perfectly replacing the traditional lights and fluorescent tubes . High lumens , long lifetime 50000H , without emission of UV and IR . With constant current of voltage driver , more safety . Very good heat dissipation performance . Low maintenance . Easy to install and clean . Wide range applications for commercial areas , office areas , residential , architectural areas and industrial areas .



Specifications

Input Voltage :

AC200V-240V , 50/60Hz

Dimension :

Φ300mm , Cut out Φ280mm

LED Chip : San'an / Philips / Osram (option)

Norminal Power :

24W

Luminous Flux (LM) :

80lm/w

CCT :

3000K / 4000K / 6500K (option)

CRI :

Ra>80 , >90 , >95 , full spectrum (option)

Driver :

Lifud / Philips / Boke / AGT / Osram (option)

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

16 , 17 , <19 , <23 (option)

Materials :

Aluminum frame , PMMA LGP

IP Rating :

IP40 (IP54 option)

Lifetime :

50000H

Warranty :

5 years

Working Ambient Temp. :

-20~+40‚ÑÉ

Working Ambient Humidity :

10%~90%

Mounting :

Recessed

Dimmable :

On/Off  / Push / Triac / 0-10V / 1-10V / DALI dimming

Certificate :

ENEC , TUV-GS , UKCA , CE , RoHS , CB , RCM , SAA , ETL

Package

Carton Size : 64x38x38cm , 20units/ctn. ( Contain inner box )

40w Led Panel Light

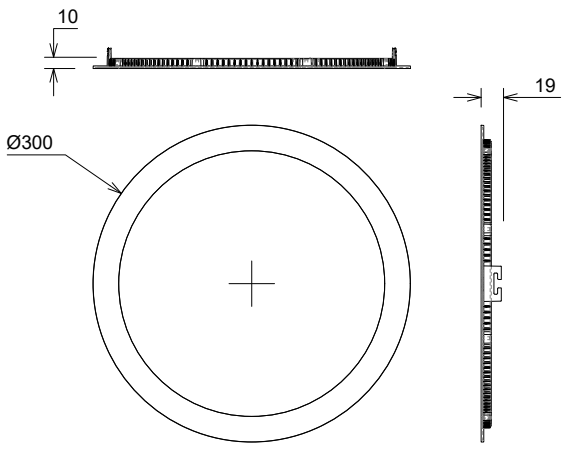

Dimensions

Ultra flat and slim design







Photometric

edgelit LED panel

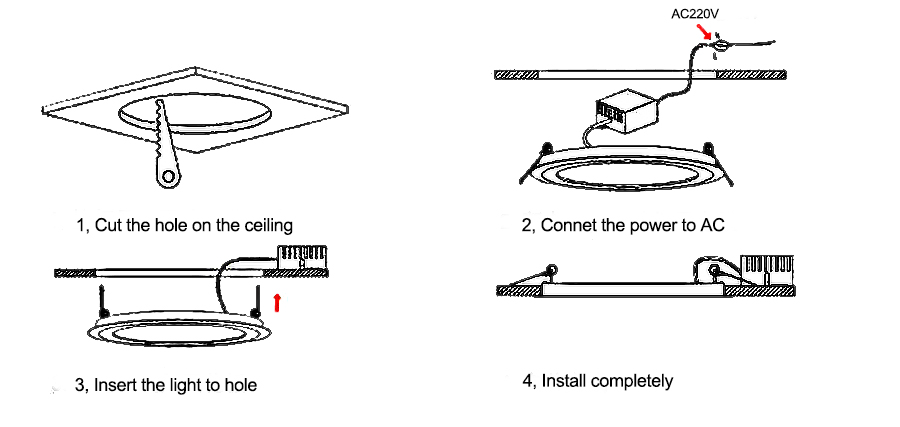

Installation Methods:

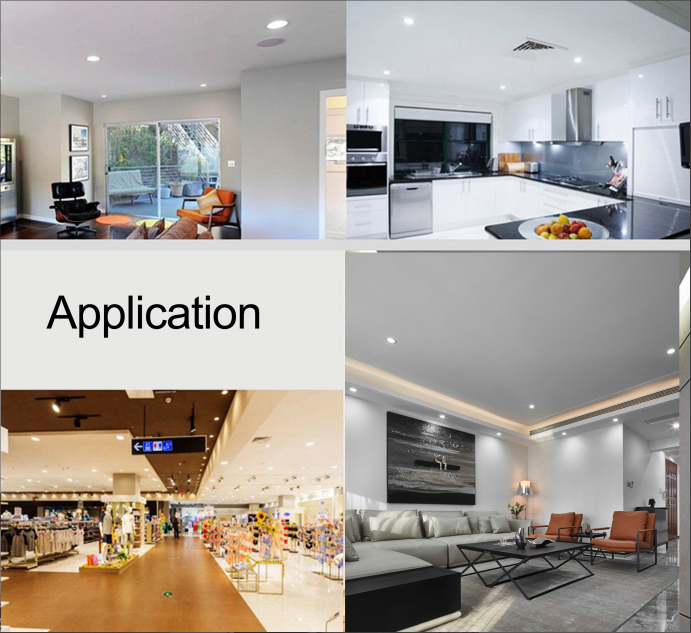

Applications
