Back-lit LED Panel 25W 170lm/w 600x600

Model: S-BL0606-2517022

- High uniformity of light

- Advanced technology SMD 2835 LED

- High light efficiency 170lm/w output

- Low glare UGR<22

- Flicker free

- Long lifetime 50000H

- 5 years warranty

- RG0



Product Details

600x600 low glare UGR<22 back-lit LED panel light , makes the environment more gentle and natural , more comfortable lights , less harm for the eyes . Without light guide plate(LGP) , won’t get yellowing . Light efficiency 170lm/w output , high brightness 4250lm , less power for more lumens , thanks to the high quality San’an 2835 LED chip . High power factor over 0.95 driver , flicker free . Long lifespan 50000H , 5 years warranty , energy saving and reliable . With white powder-coating aluminum frame , matching most types ceiling grids . Very good heat dissipation performance . Low maintenance . Very popular for the EU market , owns the ENEC , CE , TUV-GS , UKCA , ROHS , ErP certificate . It is perfect for variety applications , for example schools , offices , education areas , etc .

Sample is available to test , and fast delivery within 15 days for the bulk orders .





Specifications

Input Voltage :

AC200V-240V , 50/60Hz

Dimension :

595x595x30mm

LED Chip :  San'an / Philips / Osram  option

Norminal Power :

25W

Luminous Flux (LM) :

170lm/w

CCT :

4000K /6000K

CRI :

Ra>80

Driver :

Lifud / Philips / Boke / AGT / Osram  option

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

UGR<22

Materials :

Aluminum frame , PMMA lens

IP Rating :

IP40

Lifetime :

50000H (L80B20)

Warranty :

5 years

Working Ambient Temp. :

-20~+40‚ÑÉ

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar

Dimmable :

On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming

Certificate :

ENEC , TUV-GS , UKCA , CE , RoHS , ErP



Package

Option 1 : Carton Sizes : 66.5x66.5x34cm , 5units/ctn. (contain inner box)

 back-lit LED panel light





Option 2 : Carton Sizes : 66x66x23cm , 6units/ctn. ( Industry package , not contain the inner box , save the CBM )

glare free LED panel

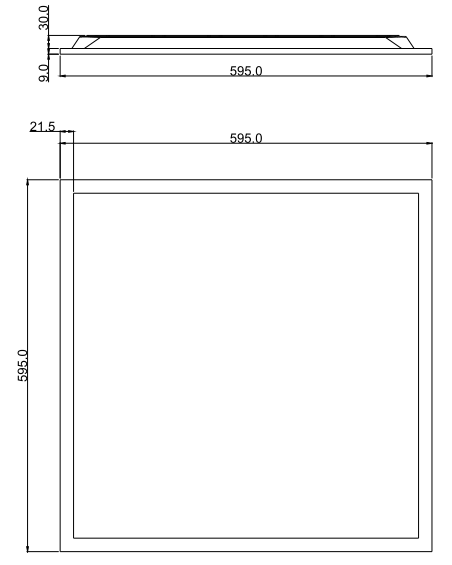

Dimensions

suspending LED panel light

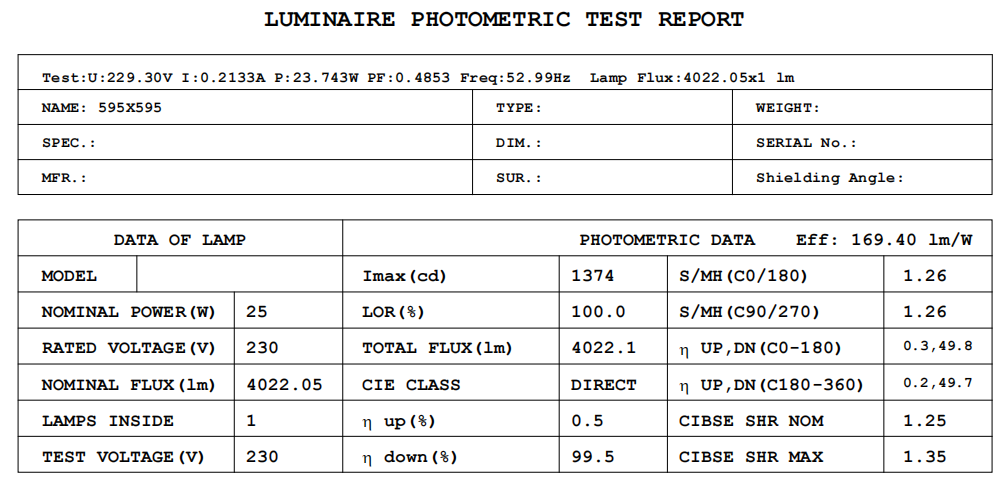

Photometric

IP40 LED panel light





PMMA Lens , perfect optical design

OEM LED panel light







Applications

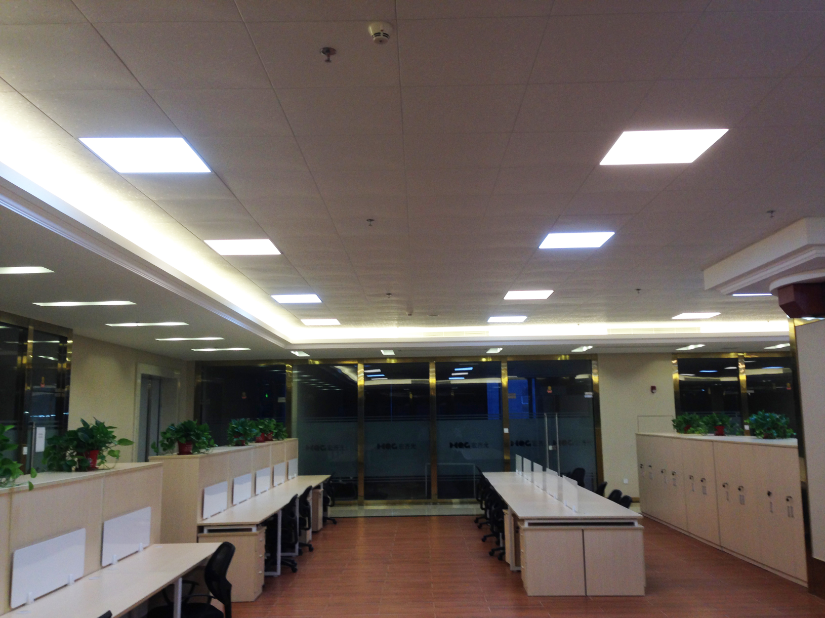

Office , School , Meeting room , Shop , Retail , Super market , Corridor , etc .
