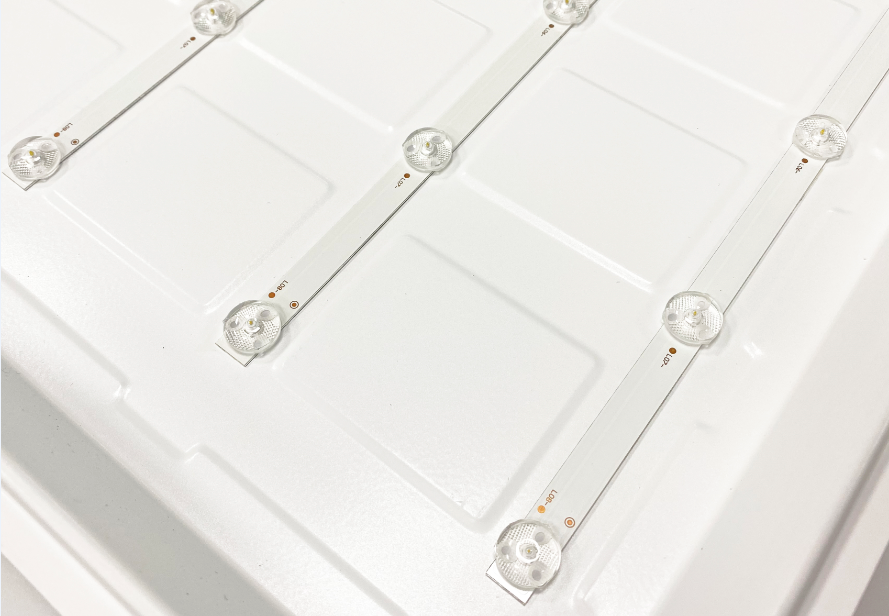

- Advanced technology SMD 2835 LED
- High light efficiency 120lm/w output
- UGR<22 comfortable and soft light

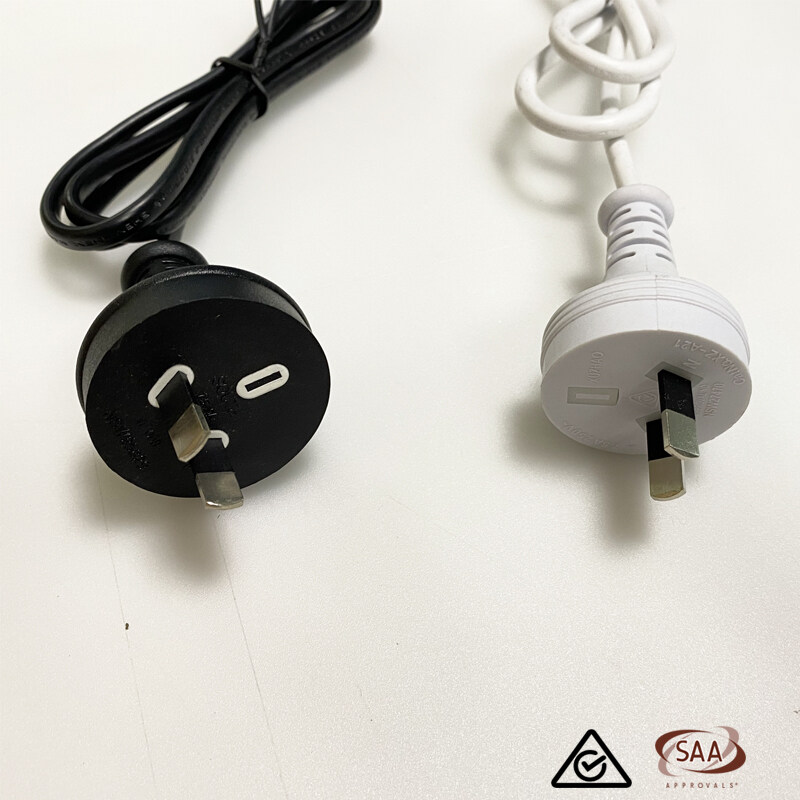

- Australian standard wire and plug
- Long lifetime 50000H
- 5 years warranty
- SAA listed
- RG0
Product Details

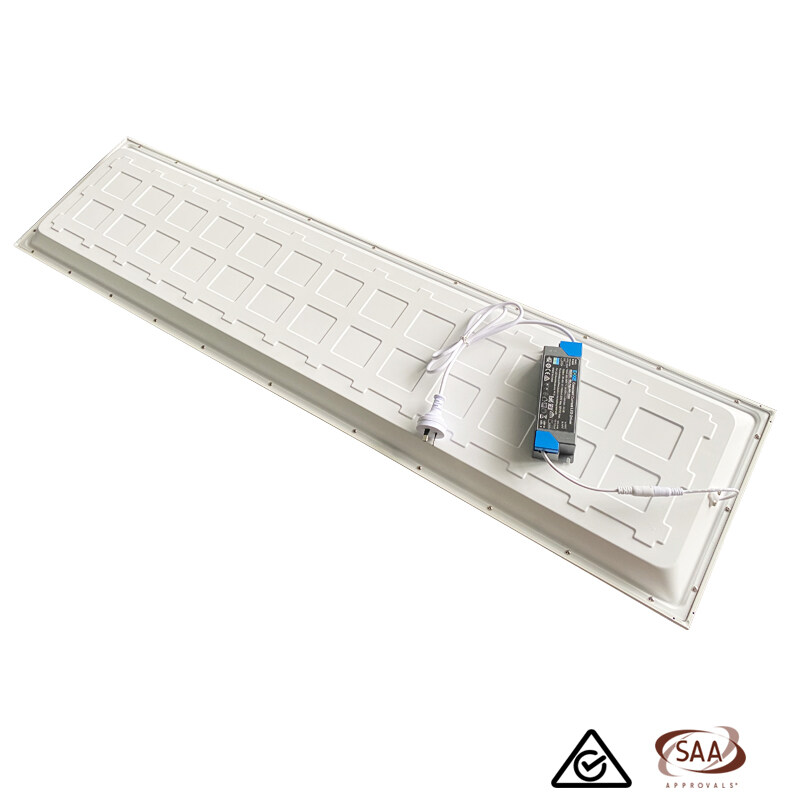

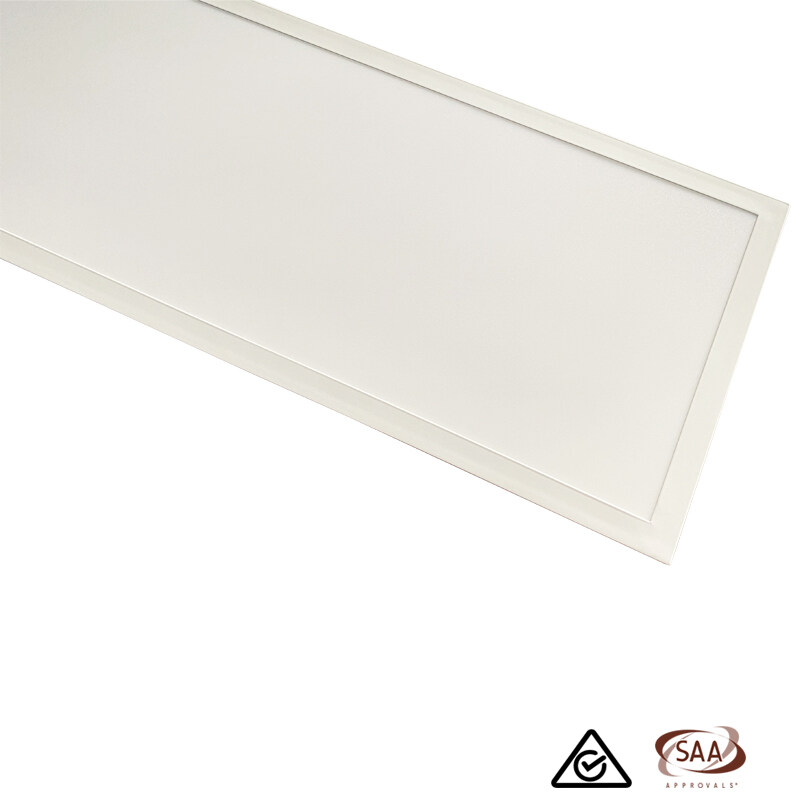

Back-lit LED panel , rectangle shape 1195x295mm , LED 36W , high light efficiency 120lm/w , luminous output 4320lm . Using PMMA lens to minimise yellowing . Matte white RAL9016 finish aluminum frame , corners gap free . High brightness , 80% energy saving .
Standard LED driver , power factor over 0.95 , flicker free . It does not harm your health and can improve the quality of photos taken with your digital camera or mobile phone .
High color rendering index CRI>80 , make everything in the space looks more natural and realistic .
Fantastic heat dissipation performance . Long lifespan 50000H , this high quality LED panel comes with 5 years warranty , providing a peace of mind when purchasing and afer sales .
Installations : Recessed , suspending mounted , surface mounted , spring clips , ideal for T-bar ceilings .
Sample is available , fast delivery within 20 days for the bulk orders .
Specifications
|
Input Voltage : |
AC220V-240V , 50/60Hz |
|
Dimension : |
1195x295x30mm |
| LED Chip : | San'an / Philips / Osram (option) |
|
Norminal Power : |
36W |
|
Luminous Flux (LM) : |
120lm/w |
|
CCT : |
3000K / 4000K / 5000K / 6000K / 6500K (option) |
|
CRI : |
Ra>80 |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<22 |
|
Materials : |
Aluminum frame , PMMA lens |
|
IP Rating : |
IP40 |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
SAA , RCM |
Package
Option 1 : Carton Sizes : 126.5x37x34cm , 5units/ctn. (contain inner box)
Option 2 : Carton Sizes : 126x36x23cm , 6units/ctn. ( Industry package , not contain the inner box , save the CBM )

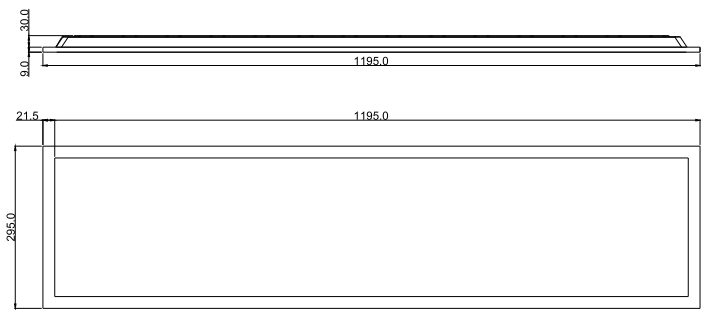

Dimensions
Ultra slim and flat design , with only 30mm overall height .

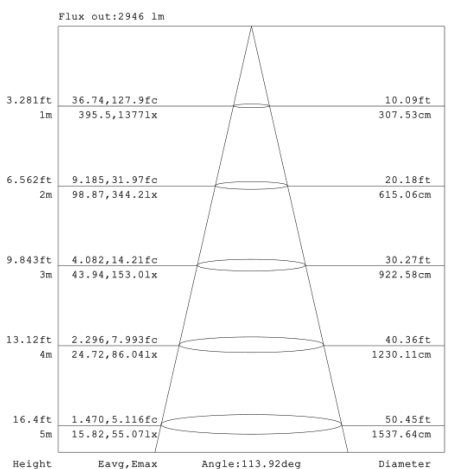

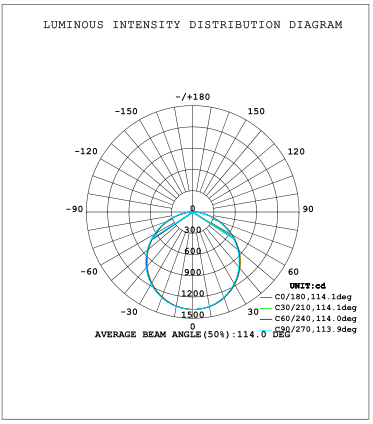

Photometric
PMMA Lens
Perfect optical design

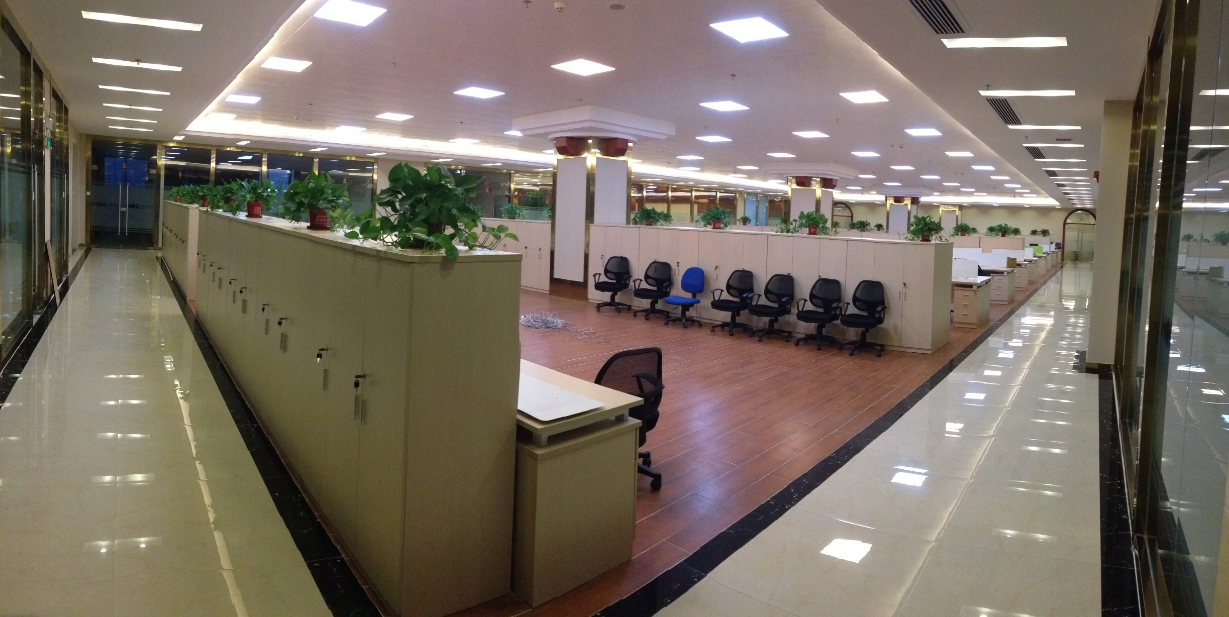

Applications
Office , Meeting room , Shop , Retail , Supermarket , Corridor , Bank , Reception areas , etc .
