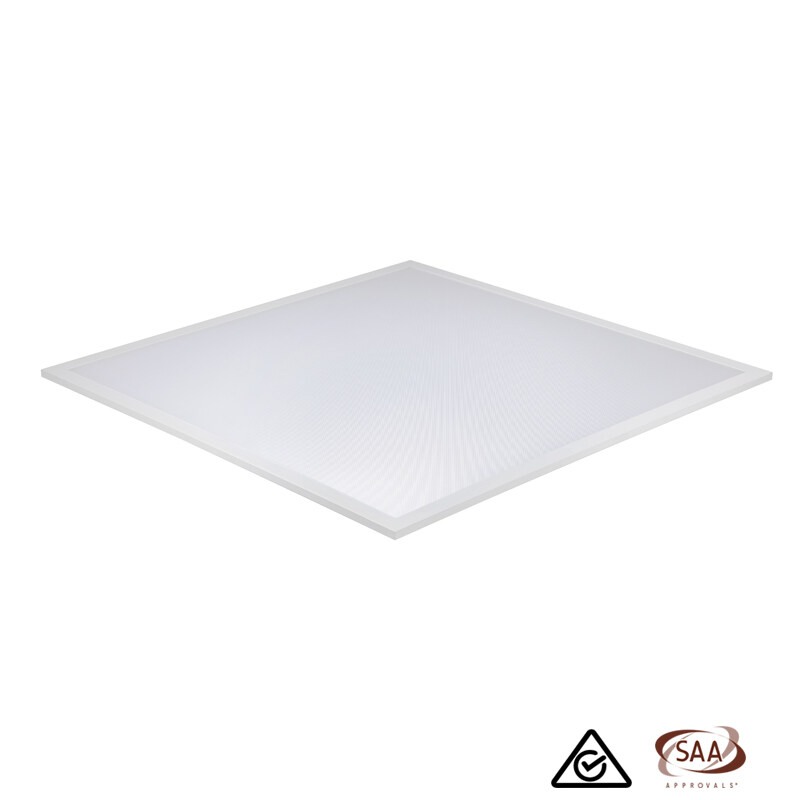

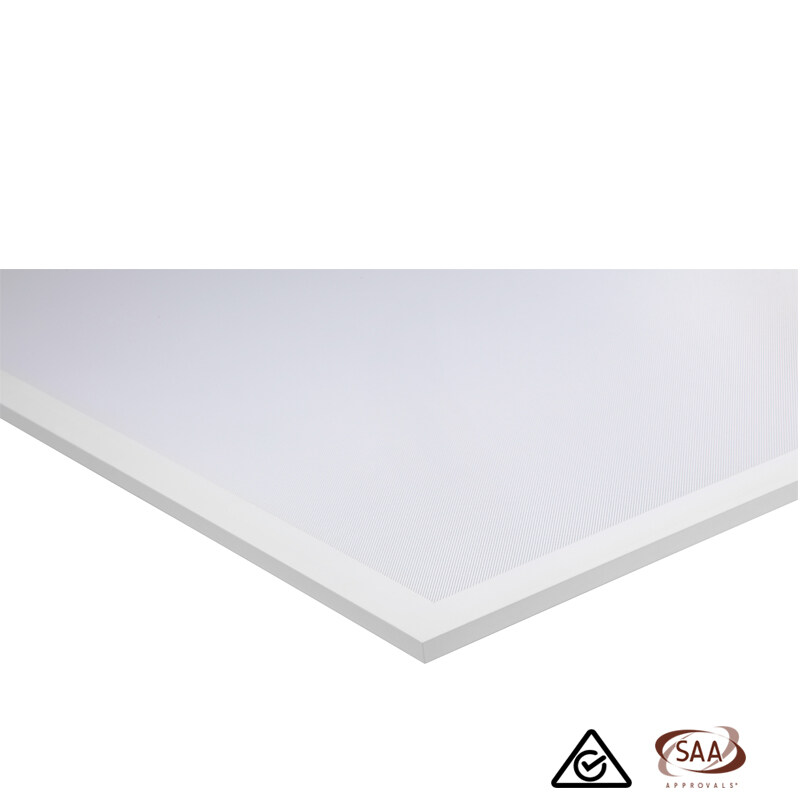

Back-lit LED Panel 36W 130lm/w UGR

Model: S-BL0606-A-3613019

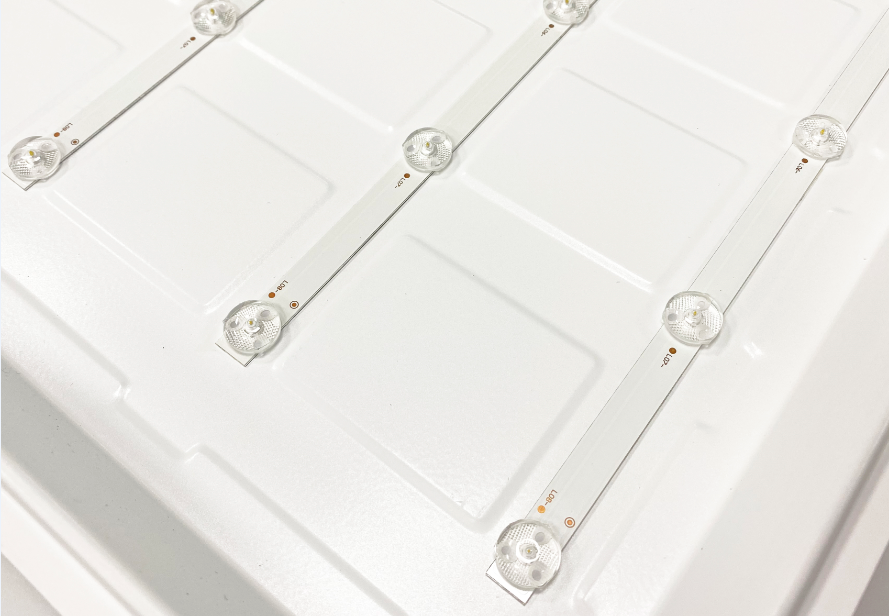

- Advanced technology SMD 2835 LED

- High light efficiency 130lm/w output

- UGR<19 , micro-prismatic diffuser

- Australian standard wire and plug

- Long lifetime 50000H

- 5 years warranty

- SAA listed

- RG0

Product Details

Back-lit LED panel , LED 36W , high light efficiency 130lm/w , luminous output 4680lm . Using PMMA lens to minimise yellowing . Matte white RAL9016 finish aluminum frame , corners gap free . High brightness , 80% energy saving .

Low glare UGR<19 LED panel light , with new design and technology micro-prismatic diffuser , makes the soft and comfortable lights , reduces the glare lights damage for people , creates the healthy lighting environment .

Standard LED driver , power factor over 0.95 , flicker free . It does not harm your health and can improve the quality of photos taken with your digital camera or mobile phone .

Fantastic heat dissipation performance . Long lifespan 50000H , this high quality LED panel comes with 5 years warranty , providing a peace of mind when purchasing and afer sales .

Installations : Recessed , suspending mounted , surface mounted , spring clips , ideal for T-bar ceilings .

Sample is available , fast delivery with 20 days for the bulk orders .



Specifications

Input Voltage :

AC220V-240V , 50/60Hz

Dimension :

595x595x30mm

LED Chip :  San'an / Philips / Osram (option)

Norminal Power :

36W

Luminous Flux (LM) :

130lm/w

CCT :

4000K / 6500K

CRI :

Ra>80

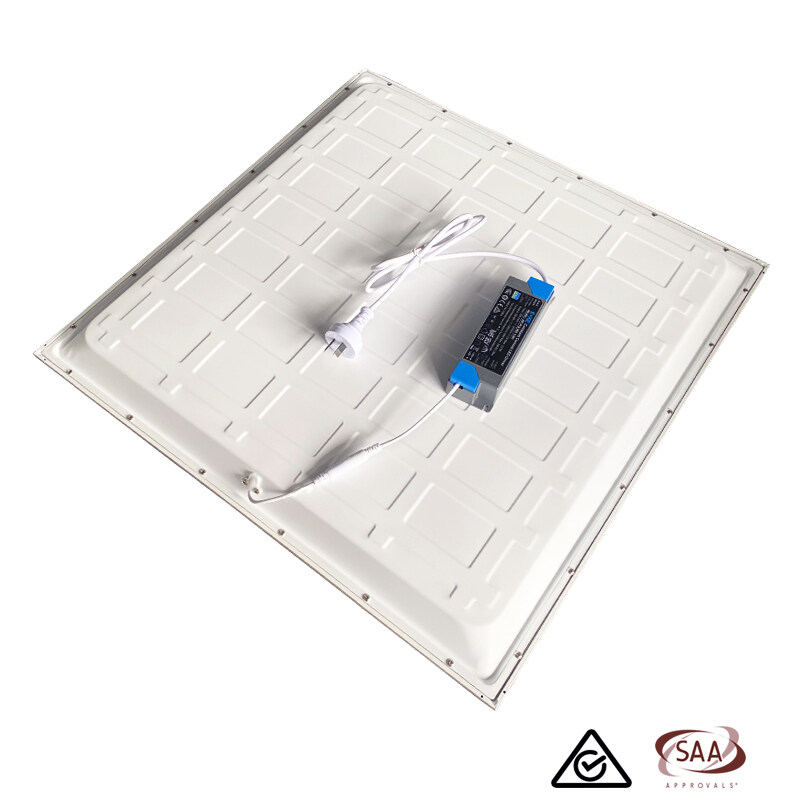

Driver :

Lifud / Philips / Boke / AGT / Osram (Option)

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

UGR<19

Materials :

Aluminum frame , PMMA lens

IP Rating :

IP40

Lifetime :

50000H

Warranty :

5 years

Working Ambient Temp. :

-20~+40‚ÑÉ

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar

Dimmable :

On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming

Certificate :

SAA , RCM

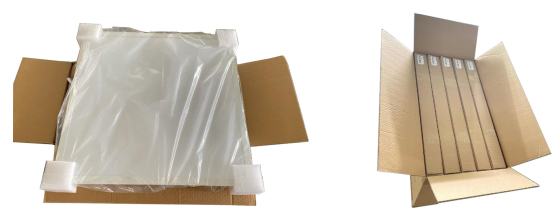

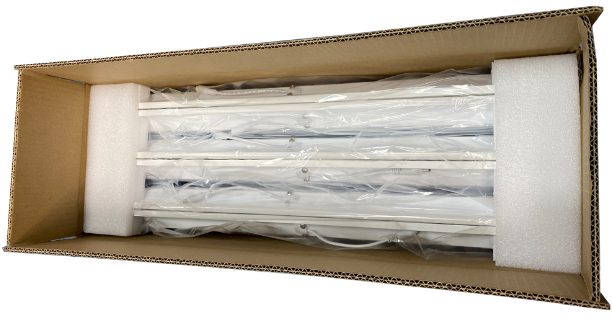

Package

Option 1 : Carton Sizes : 66.5x66.5x34cm , 5units/ctn. (contain inner box)

 China LED panel supplier





Option 2 : Carton Sizes : 66x66x23cm , 6units/ctn. ( Industry package , not contain the inner box , save the CBM )

led panel lights china supplier







Dimensions

Ultra slim and flat design , with only 30mm overall height .

0-10V dimmable LED panel light







Photometric

led panel light 595x595mm backlit LED panel light

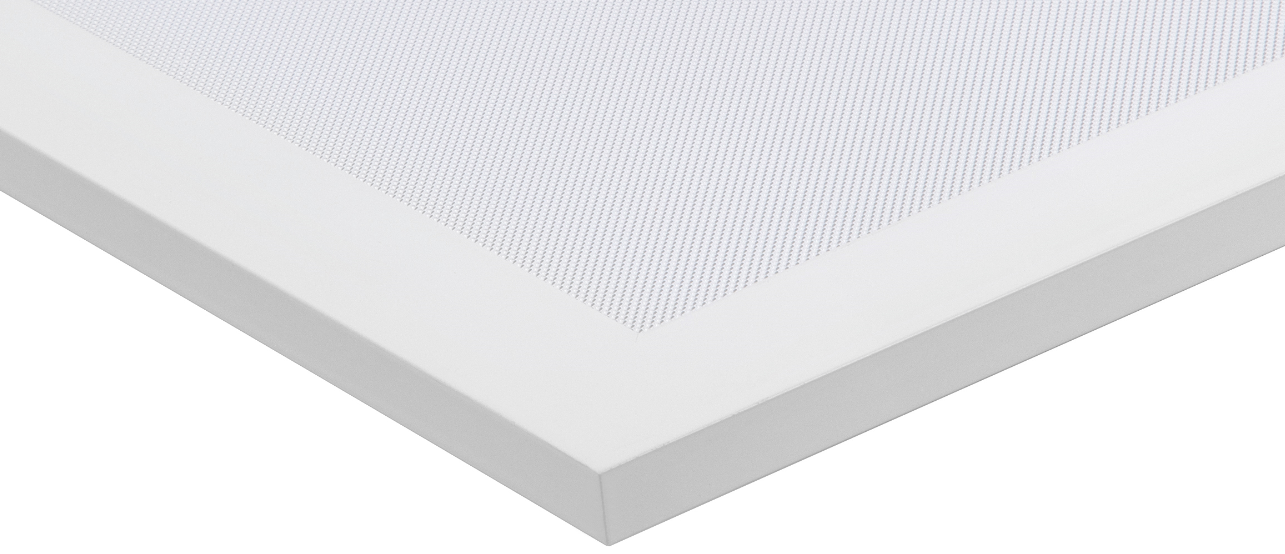

PMMA Lens

Perfect optical design

Flicker free LED panel light







Micro-prismatic diffuser

micro-prismatic LED panel

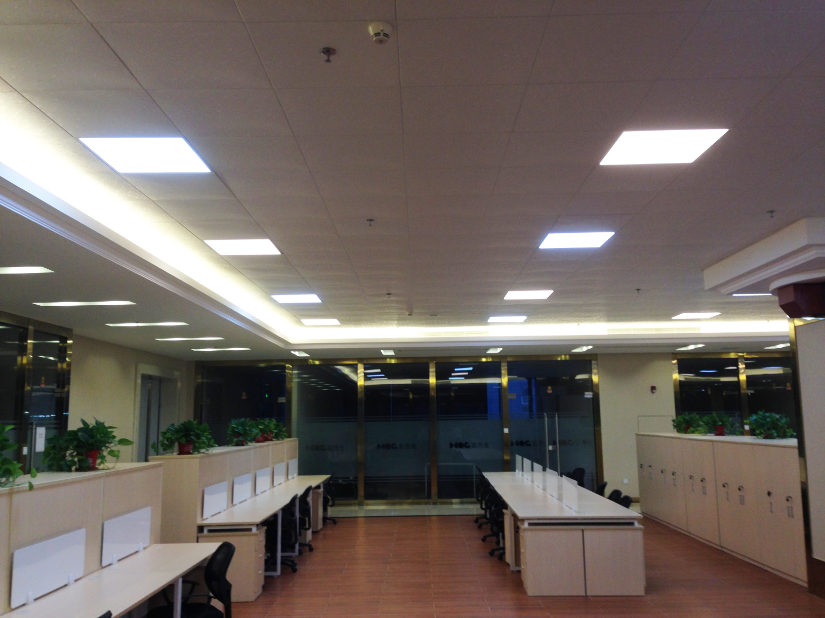

Applications

School , Education areas , Classroom , Office , Meeting room , Shop , Retail , Supermarket , Corridor , Bank , Reception areas , etc .

commercial panel light CE LED panel
