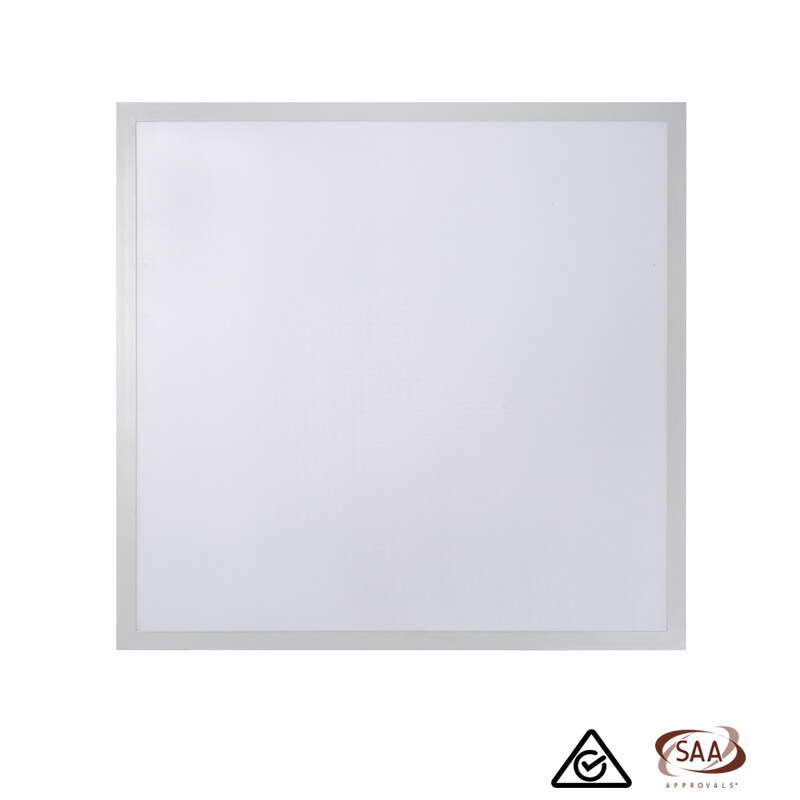

Back-lit LED Panel Tricolour Switchable 36W 600x600

Model: S-BL0606-A-3612022T

- CCT Switchable - Tricolour 3000K / 4000K / 6500K

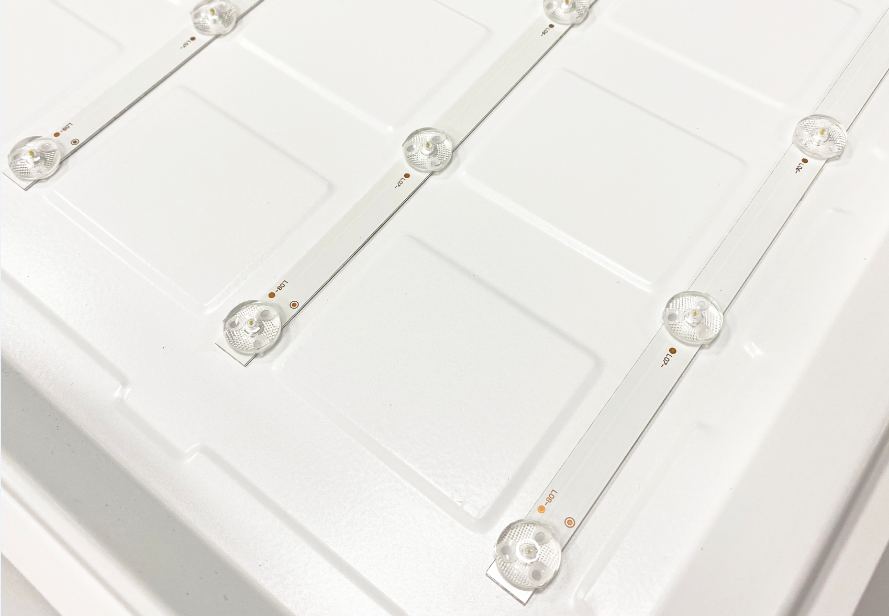

- Advanced technology SMD 2835 LED

- High light efficiency 120lm/w output
- UGR<22 comfortable and soft light
- Australian standard wire and plug
- Long lifetime 50000H
- 5 years warranty
- SAA listed

Product Details

Back-lit LED panel , tricolour LED panel light , LED 36W , high light efficiency 120lm/w , luminous output 4320lm . Using PMMA lens to minimise yellowing . Matte white RAL9016 finish aluminum frame , corners gap free . High brightness , 80% energy saving .

With the convenient tricolour dip switch attached to the cable of the fitting , suitable for wide range applications , you can select your required color temperature when install the LED panel , also save on inventory space .

Standard LED driver , power factor over 0.95 , flicker free . It does not harm your health and can improve the quality of photos taken with your digital camera or mobile phone .

Fantastic heat dissipation performance . Long lifespan 50000H , this high quality LED panel comes with 5 years warranty , providing a peace of mind when purchasing and afer sales .

Installations : Recessed , suspending mounted , surface mounted , spring clips , ideal for T-bar ceilings .

Sample is available , fast delivery with 20 days for the bulk orders .



Specifications

Input Voltage :

AC220V-240V , 50/60Hz

Dimension :

595x595x30mm

LED Chip : San'an / Philips / Osram (option)

Norminal Power :

36W

Luminous Flux (LM) :

120lm/w

CCT :

Switchable 3000K / 4000K / 6500K

CRI :

Ra>80

Driver :

Lifud / Philips / Boke / AGT / Osram (option)

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

UGR<22

Materials :

Aluminum frame , PMMA lens

IP Rating :

IP40

Lifetime :

50000H

Warranty :

5 years

Working Ambient Temp. :

-20~+40℃

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar

Dimmable :

On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming

Certificate :

SAA , RCM

Package

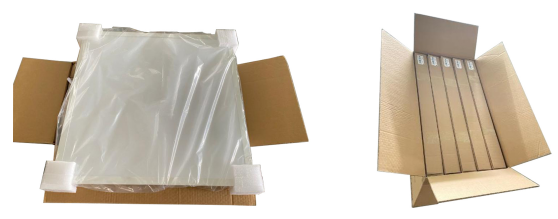

Option 1 : Carton Sizes : 66.5x66.5x34cm , 5units/ctn. (contain inner box)

 LED panel light CCT

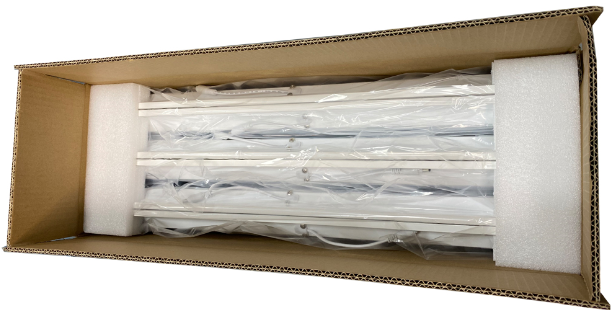

Option 2 : Carton Sizes : 66x66x23cm , 6units/ctn. ( Industry package , not contain the inner box , save the CBM )

5 years warranty LED panel

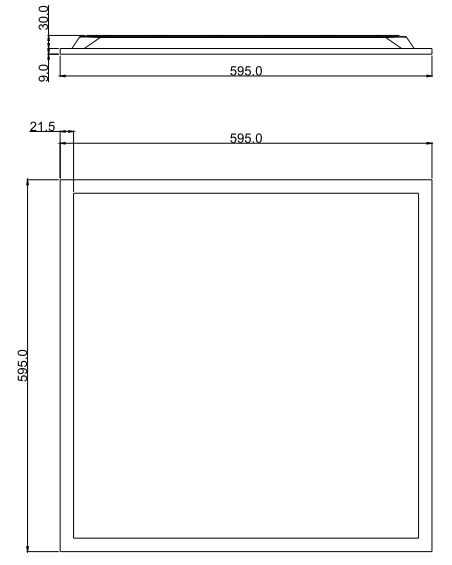

Dimensions

Ultra slim and flat design , with only 30mm overall height .

DALI dimming LED panel light

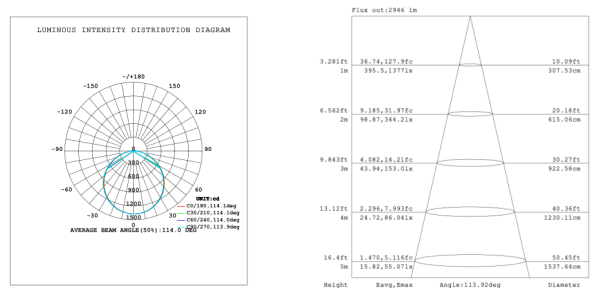

Photometric

ultra slim LED panel









PMMA Lens

Perfect optical design

led panel lights china supplier

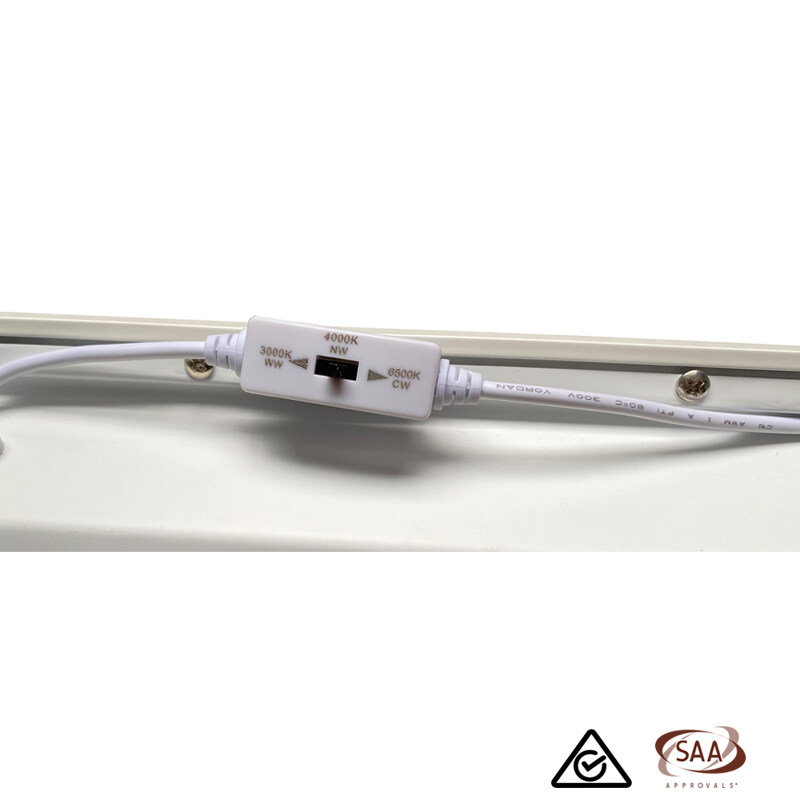

Tricolour switch

LED panel luminaires







Applications

Office , Meeting room , Shop , Retail , Supermarket , Corridor , Bank , Reception areas , etc .
