Boke Linear Dimmable Driver

Model: BK-CJL


- Provide 3.3V/5V/10V PWM dimming interface for control module or sensor

- Provide 12V 100mA auxiliary power supply to power control module or sensor

- Auxiliary 12V supports fast power-down feature

- 10-level current output can be realized by DIP-switch

- Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification

- Using HPC patented technology at any dimming level, the brightness of the lights is the same

- Standby power input<0.5W, meets the requirements of ErP certification

- High PF, high efficiency, low THD

- SELV and Class I design, suitable for use inside of the light

- Passed CE, ENEC, UKCA, RCM, CCC, EL and other certifications

- IP20 protection grade, indoor use

- Nominal life-time up to 100,000h

- 5-year guarantee

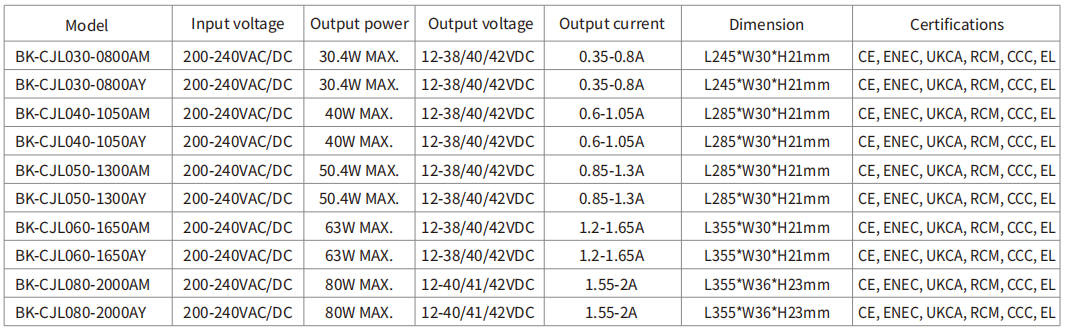

Model List

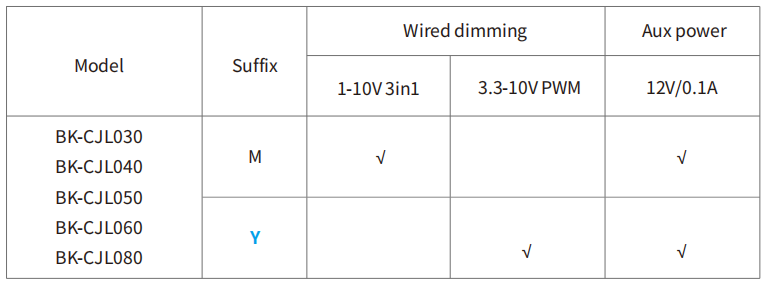

Function List

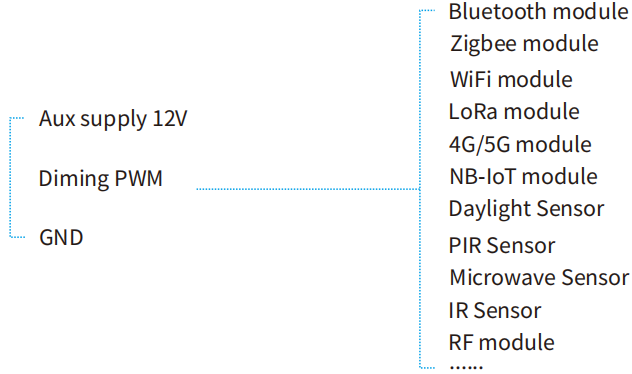

Typical applications

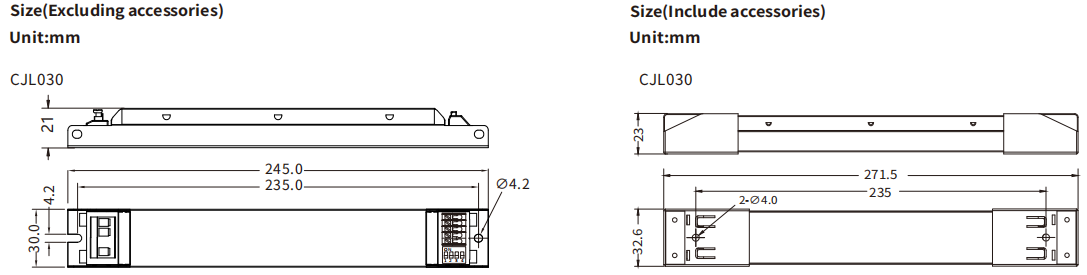

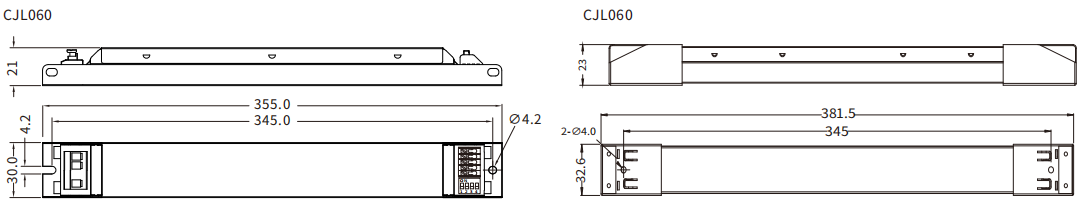

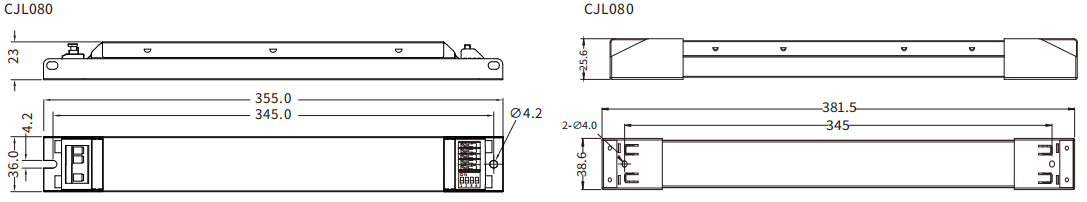

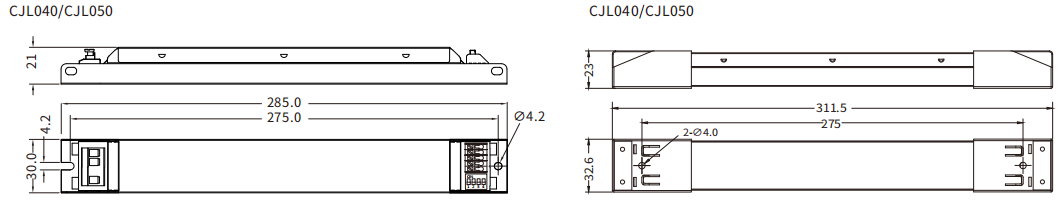

Mechanical Specification
