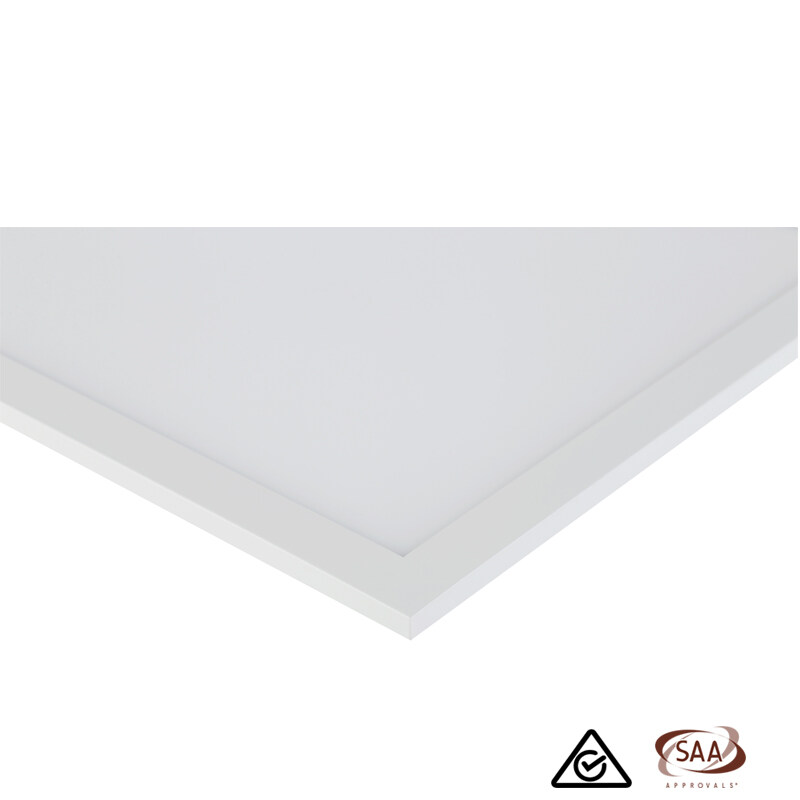

Edge-lit LED Panel 130lm/w 600x600

Model: S-PL0606-A-3613022

- Super slim and flat design
- High light efficiency output 130lm/w
- UGR<22 comfortable and soft light
- Non-yellowing PMMA LGP
- Australian standard wire and plug
- Long lifetime 50000H
- 5 years warranty
- SAA listed

Product Details

Edge-lit LED panel , LED 36W , high light efficiency 130lm/w , luminous output 4680lm . 100% PMMA non-yellowing light guide . Matte white RAL9016 finish aluminum frame , corners gap free . High brightness , 80% energy saving .

Standard LED driver , power factor over 0.95 , flicker free . It does not harm your health and can improve the quality of photos taken with your digital camera or mobile phone .

Fantastic heat dissipation performance . Long lifespan 50000H , this high quality LED panel comes with 5 years warranty , providing a peace of mind when purchasing and afer sales .

Installations : Recessed , suspending mounted , surface mounted , spring clips , ideal for T-bar ceilings .

Sample is available , fast delivery with 20 days for the bulk orders .



Specifications

Input Voltage :

AC200V-240V , 50/60Hz

Dimension :

595x595x9mm

LED Chip : San'an / Philips / Osram (option)

Norminal Power :

36W

Luminous Flux (LM) :

130lm/w

CCT :

3000K / 4000K / 5000K / 6500K

CRI :

Ra>80

Driver :

Lifud / Philips / Boke / Osram (option)

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

UGR<22

Materials :

Aluminum frame , PMMA LGP

IP Rating :

IP40

Lifetime :

50000H (L90B10)

Warranty :

5 years

Working Ambient Temp. :

-20~+40℃

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar

Dimmable :

On/Off  / Push / Triac / 0-10V / 1-10V / DALI dimming

Certificate :

SAA , RCM

Package

Carton Size : 63x20x67.5cm , 5units/ctn. ( Contain inner box )

led panel light 595x595mm





Dimensions

Ultra flat and slim design

edgelit LED panel led panel light 595x595mm







Photometric

edgelit LED panel supplier





Applications

Office , Meeting room , Shop , Retail , Supermarket , Corridor , Bank , Reception areas , etc .

suspending LED panel light
