- Super slim and flat design
- High light efficiency output 130lm/w
- UGR<19 , micro-prismatic diffuser
- Non-yellowing PMMA LGP
- Australian standard wire and plug
- Long lifetime 50000H
- 5 years warranty
- SAA listed
- RG0
Product Details
Edge-lit LED panel , LED 36W , high light efficiency 130lm/w , luminous output 4680lm . 100% PMMA non-yellowing light guide . Matte white RAL9016 finish aluminum frame , corners gap free . High brightness , 80% energy saving .
We always commit to the healthy lighting , this type of LED panel with new micro-prismatic diffuser , low glare UGR<19 , protect the eyes , make the lights more soft and comfortable .
Standard LED driver , power factor over 0.95 , flicker free . It does not harm your health and can improve the quality of photos taken with your digital camera or mobile phone .
Fantastic heat dissipation performance . Long lifespan 50000H , this high quality LED panel comes with 5 years warranty , providing a peace of mind when purchasing and afer sales .
Installations : Recessed , suspending mounted , surface mounted , spring clips , ideal for T-bar ceilings .
Sample is available , fast delivery within 20 days for the bulk orders .
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|
Dimension : |
595x595x9mm |
| LED Chip : | San'an / Philips / Osram (option) |
|
Norminal Power : |
36W |
|
Luminous Flux (LM) : |
130lm/w |
|
CCT : |
3000K / 4000K / 5000K / 6500K |
|
CRI : |
Ra>80 |
|
Driver : |
Lifud / Philips / Boke / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<19 |
|
Materials : |
Aluminum frame , PMMA LGP |
|
IP Rating : |
IP40 |
|
Lifetime : |
50000H (L90B10) |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
SAA , RCM |
Package
Carton Size : 63x20x67.5cm , 5units/ctn. ( Contain inner box )
Dimensions

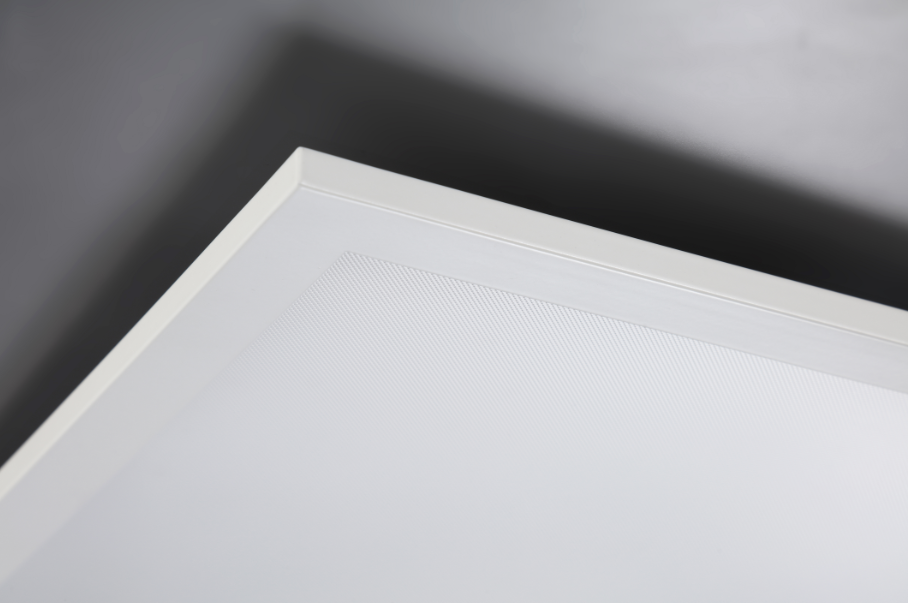

Ultra flat and slim design

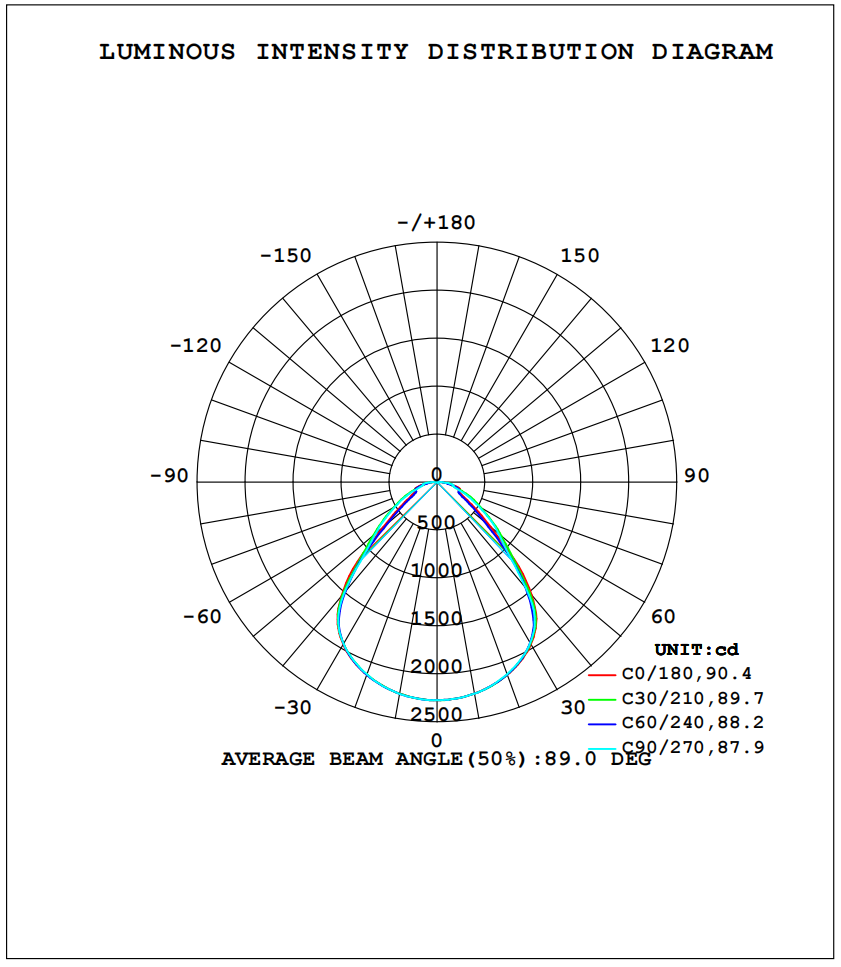

Photometric

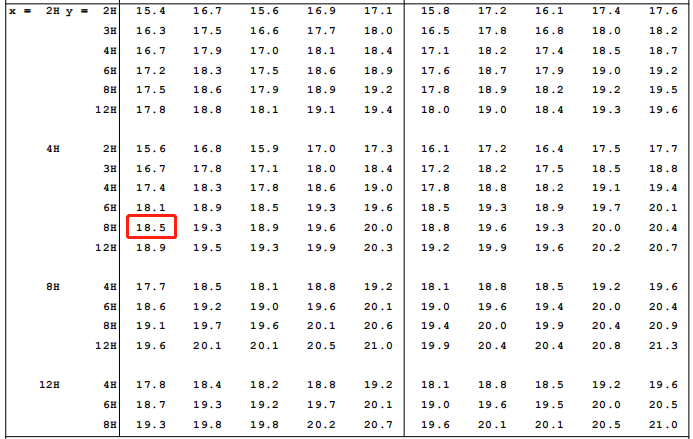

Micro-prismatic diffuser , UGR<19
Applications
School, Office, Education areas, Meeting room, Shop, Retail, Supermarket, Corridor, Bank, Reception areas, etc .
