Intelligent CCT Tunable White LED Panel

Model: S-PL0606-CCT

- 0-10V/1-10V/Dali(DT6/DT8)

- Brightness and color temperature adjustable

- Advanced and smart technology , 2.4G telecontrol +Wifi wireless +Bluetooth dimming , CCT control , tunable white

- Color temperature range 2700K-6500K

- RF multi-function remote controller

- Ideal for circadian/human centric lighting

- Comprehensive colour temperature changing and dimming

- No flickering driver , high power factor over 90%

- Long lifespan L80B20 50000H , 5 years warranty

- 100% PMMA material light guide plate , non-yellowing

- Fantastic heat dissipation performance

- Low Maintenance

- RG0



Specifications

Input Voltage :

AC110V-240V , 50/60Hz

Dimensions option :

600x600 , 1200x300 , 1200x600 , 600x300 , 620x620 , 300x300 , and customized sizes

LED Chip :  San'an / Philips / Osram option

Norminal Power :

12W-72W

Luminous Flux (LM) :

80-100lm/w

CRI :

Ra>80/90/95/ full spectrum

CCT :

2700K-6500K

Power Factor :

PF>0.9

UGR(Unified Glare Rating) :

UGR<23 , UGR<19 , UGR17 , UGR16 options

Materials :

Aluminum frame , PMMA LGP

IP Rated :

IP40/IP44/IP54/IP65 option

Lifetime :

50000H

Warranty :

5 years

Working Ambient Temp. :

-20~+40‚ÑÉ

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar , Wall mounted

Certificate :

ENEC , TUV-GS , UKCA , CE , RoHS , ERP , SAA , RCM , ETL , CB .



Comliant with the EU market certificate of ENEC , CE , TUV-GS , ErP , UKCA , RoHS ; Autralian market certificate of SAA , RCM ; North American market certificate of ETL , DLC . CB certificate also approved .

Sample is available to test , and fast delivery within 25 days for the bulk orders .

intelligent LED panel light

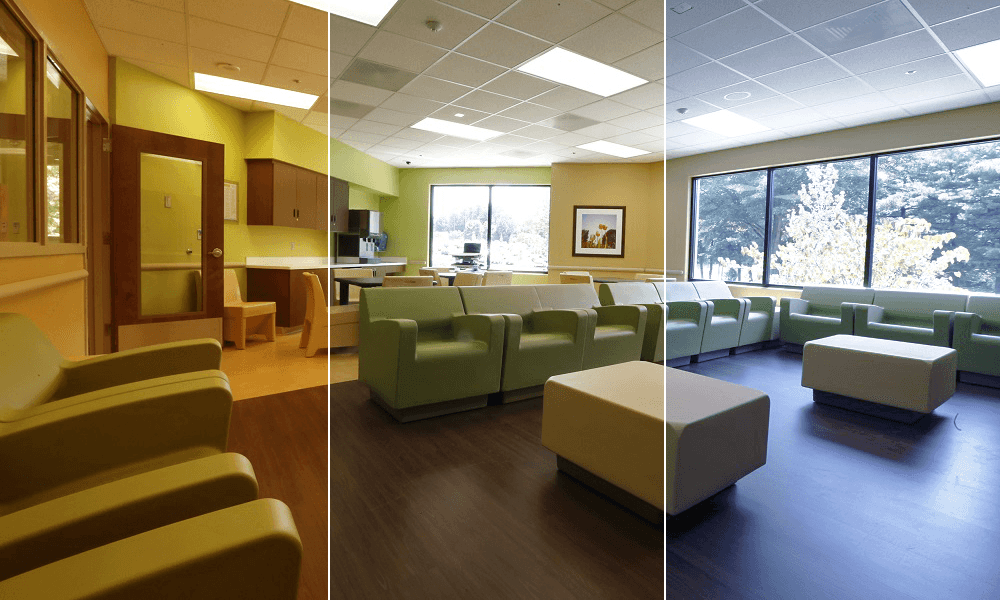

Applications

Office , Dinning room , Reception areas , Lounge , Entertainment areas , Home , Healthcare , Cafe , and other commercial areas .

LED panel light CCT

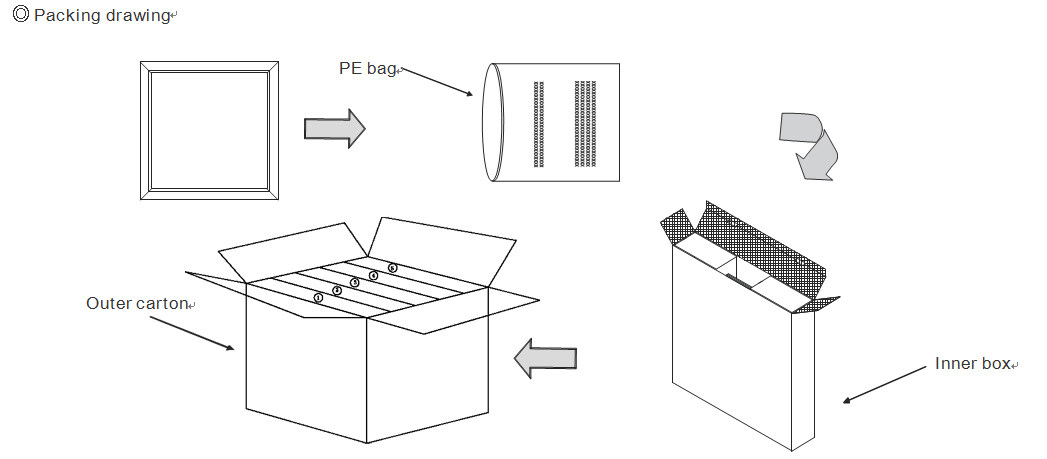

Package

LED panel light 595x595mm
