Intelligent RGB RGBW RGBCW LED Panel

Model: S-PL0606-RGB

- RGB, 0-10V/1-10V Dali(DT6/DT8)

- Brightness and color temperature adjustable

- 2.4G telecontrol +Wifi wireless +Bluetooth dimming , CCT control

- RF multi-function remote controller

- Ideal for circadian/human centric lighting

- Comprehensive colour temperature changing and dimming

- No flickering driver , high power factor over 90%

- Long lifespan L80B20 50000H , 5 years warranty

- 100% PMMA material light guide plate , non-yellowing

- Fantastic heat dissipation performance

- Low Maintenance



Specifications

Input Voltage :

AC110V-240V , 50/60Hz

Dimensions option :

600x600 , 1200x300 , 1200x600 , 600x300 , 620x620 , 300x300 , and customized sizes .

LED Chip :  San'an / Philips / Osram option

Norminal Power :

12W-72W option

Luminous Flux (LM) :

80-100lm/w

CRI :

Ra>80/90/95/full spectrum option

CCT :

RGB + 2700K~6500K

Power Factor :

PF>0.9

UGR(Unified Glare Rating) :

UGR<23 , UGR<19 , UGR17 , UGR16 option

Materials :

Aluminum frame , PMMA LGP

IP Rated :

IP40/IP44/IP54/IP65 option

Lifetime :

50000H

Warranty :

5 years

Working Ambient Temp. :

-20~+40℃

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar , Wall mounted

Certificate :

ENEC , TUV-GS , UKCA , CE , RoHS , ERP , SAA , RCM , ETL , CB .

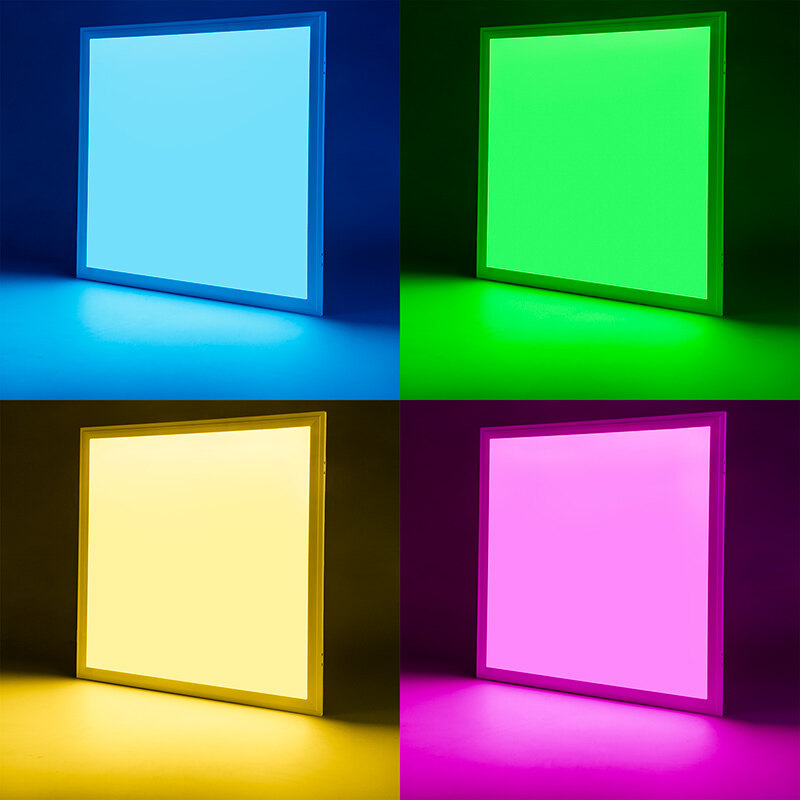

Our RGB series LED panels can light up your spaces in true warm white or any colors you like . Wide range applications for entertainment areas , trade shows , home , shopping mall and more .

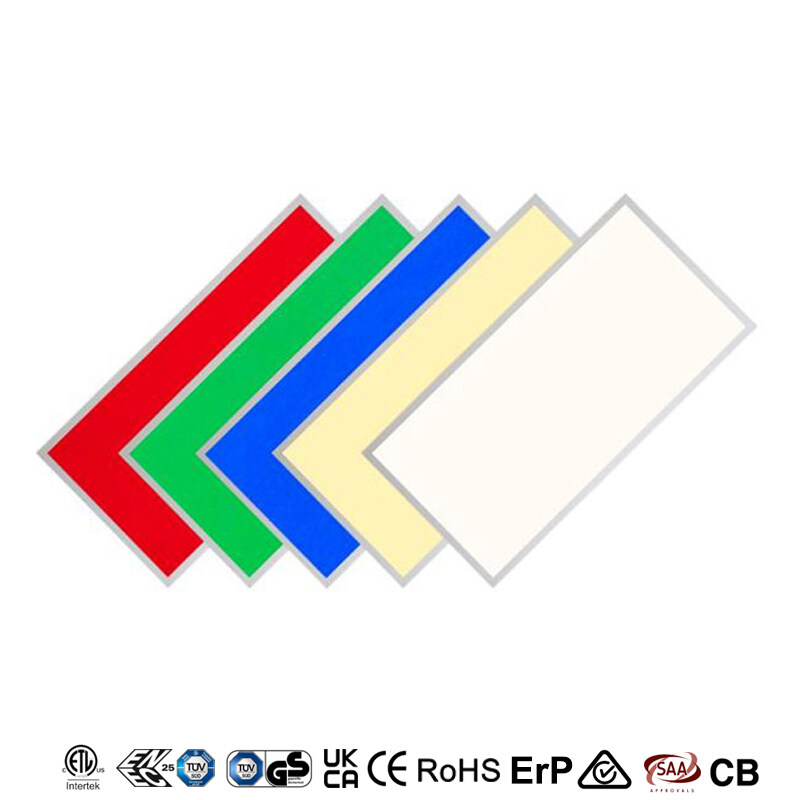

Comliant with the EU market certificate of ENEC , CE , TUV-GS , ErP , UKCA , RoHS ; Autralian market certificate of SAA , RCM ; North American market certificate of ETL , DLC . CB certificate also approved .

Sample is available to test , and fast delivery within 25 days for the bulk orders .

intelligent LED panel light





Applications

Office , Dinning room , Reception areas , Lounge , Entertainment areas , Home , Healthcare , Cafe , and other commercial areas .

 led panel light rgbw

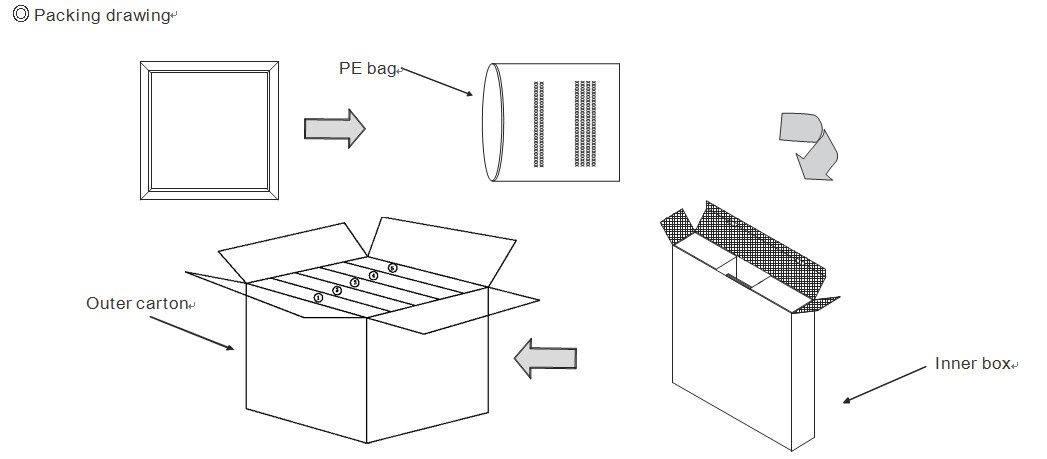

Package

CRI>90 LED panel
