- Protection class IP44/IP20
- 100% non-yellowing PMMA LGP
- 120lm/w light efficiency output
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0

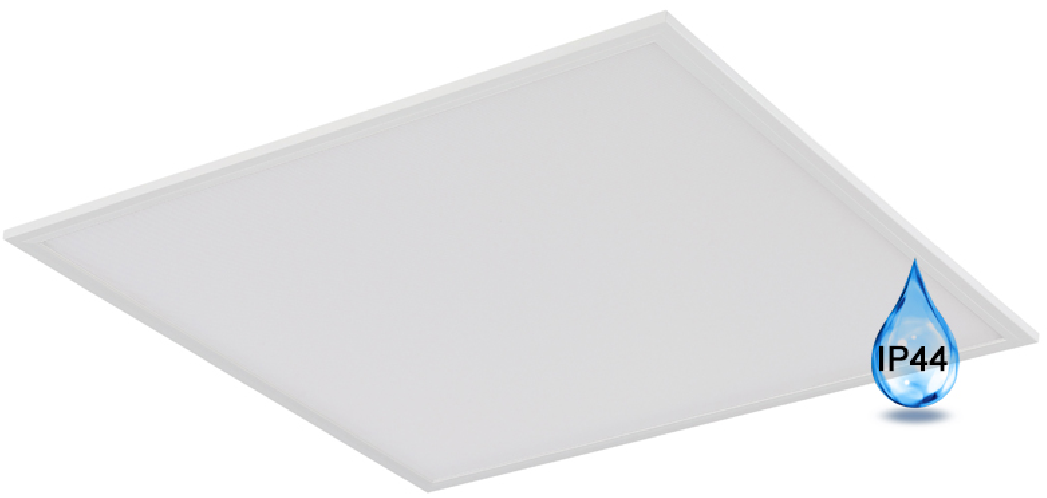

Product Details
New technology front side IP44 dustproof and waterproof . Advanced SMD LED technology edge lit , 100% non-yellowing PMMA light guide plate . with instant start and no flickering driver . Long lifespan over 50000H , 5 years warranty , greatly reducing the maintenance . It is perfect to install in the bathroom , toilet , kitchen , office , foyer and other commercial spaces . Compliant with ENEC , CE , RoHS , TUV-GS , ErP , UKCA , ETL , SAA , RCM , CB certificate .
Sample is available to test , and fast delivery within 25 days for the bulk orders .
Specifications
|
Input Voltage : |
AC110V-240V , 50/60Hz |
|
Dimension : |
595x595x9mm |
|
Norminal Power : |
40W |
| LED Chip : | San'an / Philips / Osram (option) |
|
Luminous Flux (LM) : |
120lm/w |
|
CCT : |
2700K / 3000K / 4000K / 5000K / 6000K / 6500K (option) |
|
CRI : |
Ra>80/90/95/97 full spectrum (option) |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<23 |
|
Materials : |
Aluminum frame , PMMA LGP |
|
IP Rated : |
IP44/IP20 |
| SDCM : | < 3 |
| Shock Testing Class : | IK07 |
|
Lifetime : |
L80/B50>100,000H , L90/10>50,000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ERP , ETL , SAA , RCM , CB |
IP44 LED panel , bathroom LED panel light , 120lm/w IP44 LED panels , LED ceiling panel IP44 , high-quality edge-lit IP44 LED panels , 60x60 IP44 LED panel lights .
Package
Carton Size : 63x20x67.5cm , 5units/ctn. ( Contain inner box )
Applications
Office , Residential , Commercial , Industrial .
