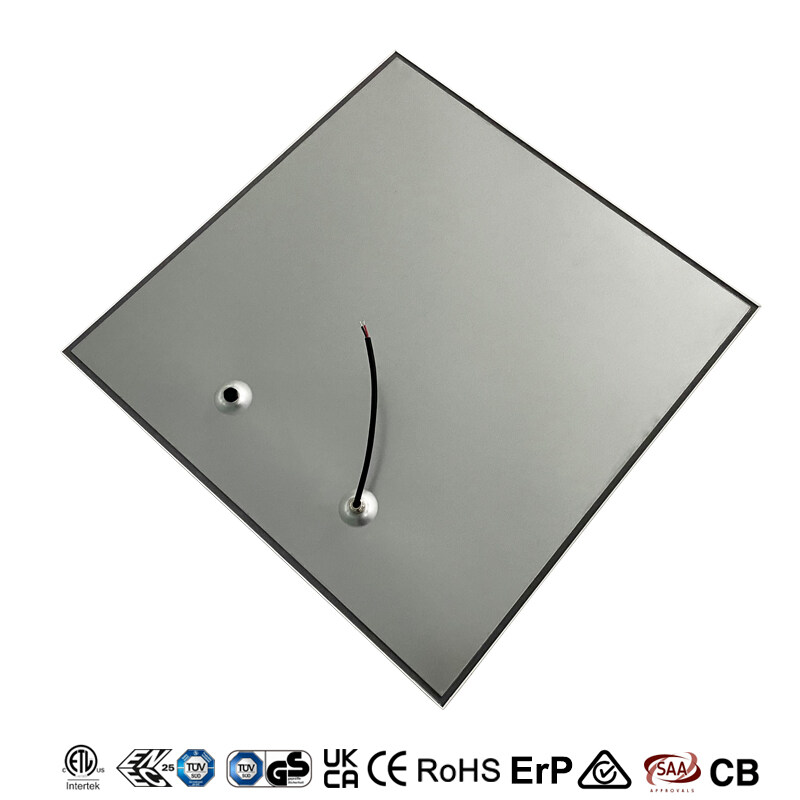

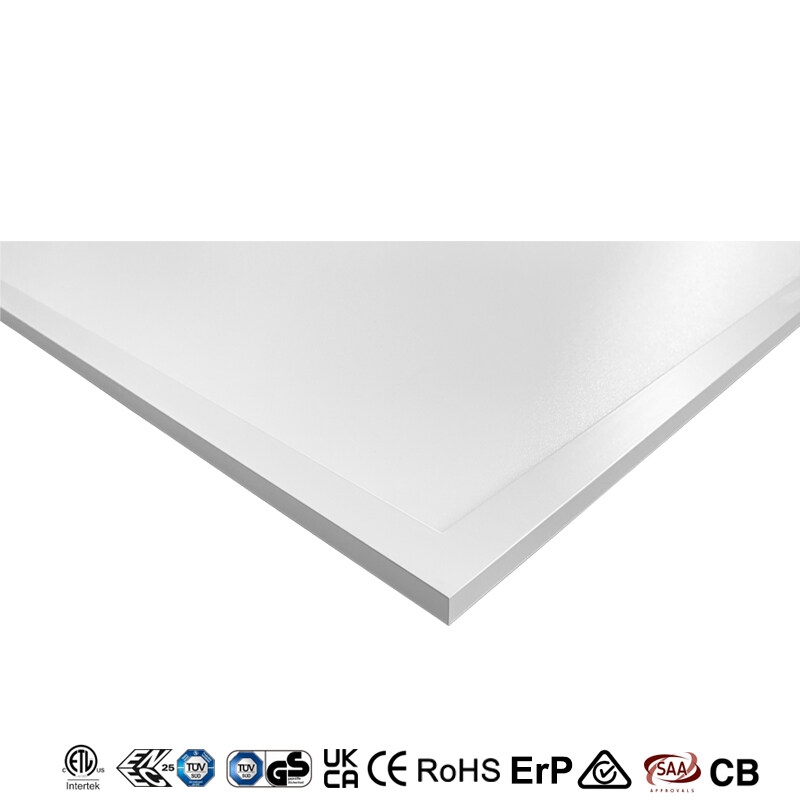

IP65 LED Panel Light 600x600

Model: S-PL0606-40100-65

- Front side , back side , complete panel reach IP65

- Anti-bacteria

- Special used in cleaning room , hospital

- Long lifetime 50000H

- 5 years warranty

- RG0

Product Details

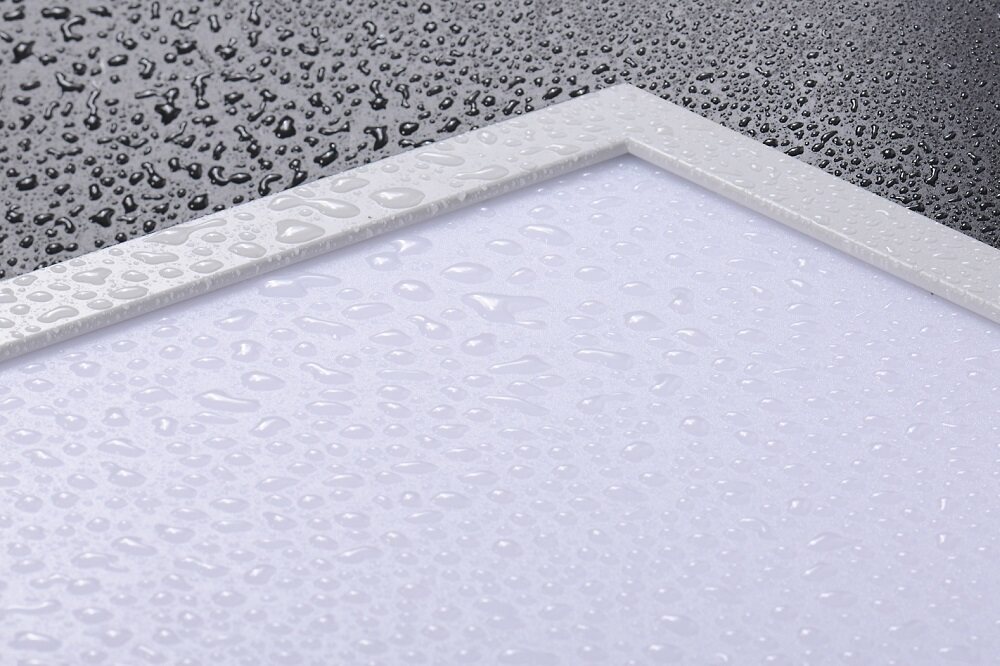

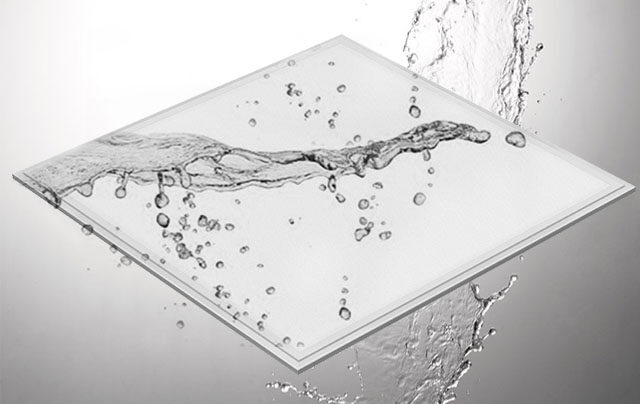

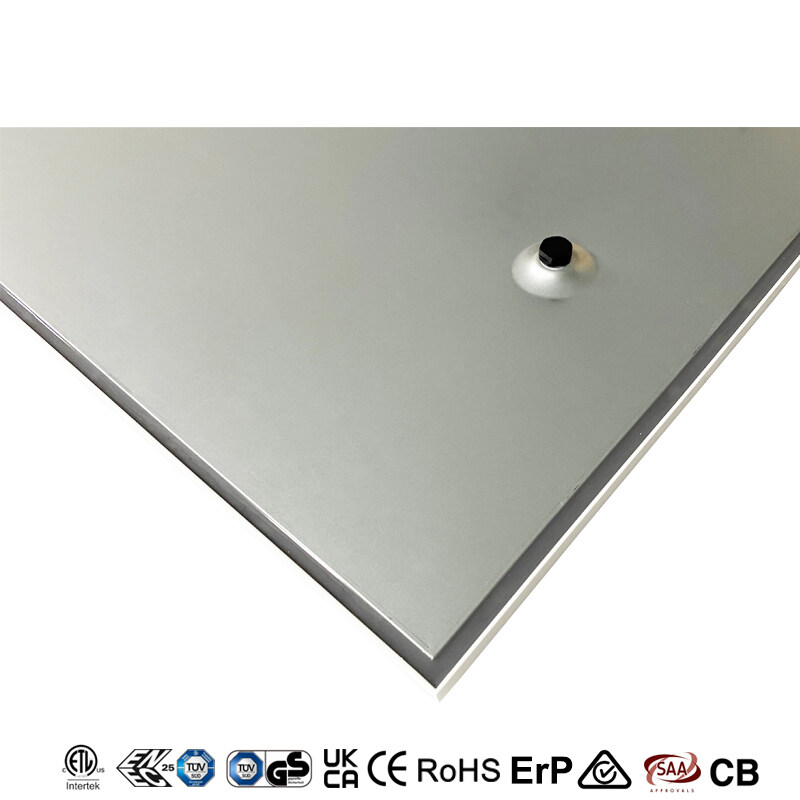

New technology IP65 LED panel , all sides filling superior glues , with breather valve on the backsize , can be IP65 dustproof and waterproof from front to the backsize of the complete panel . Advanced SMD LED technology edge lit , non-yellowing PMMA light guide plate . IP65 and IP20 driver for option . Long lifespan over 50000H , 5 years warranty , greatly reducing the maintenance . It is perfect to install in the a high humidity space especially the indoor swimming pool , hospital , toilet , kitchen , bathroom , foyer , operating room, pharmaceutical factory , etc.

Sample is available to test , and fast delivery within 25 days for the bulk orders .



Specifications

Input Voltage :

AC110V-240V , 50/60Hz

Dimension :

595x595x11mm

Norminal Power :

25W-40W option

LED Chip :  San'an / Philips / Osram (option)

Luminous Flux (LM) :

100lm/w-150lm/w (option)

CCT :

2700K / 3000K / 4000K / 6000K / 6500K (option)

CRI :

Ra>80/90/95/97 full spectrum (option)

Driver :

Lifud / Philips / Boke / AGT / Osram (option)

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

UGR<23 / UGR<19 / UGR17 / UGR16 (option)

Materials :

Aluminum frame , PMMA LGP

IP Rated :

IP65

Lifetime :

50000H

Warranty :

5 years

Working Ambient Temp. :

-20~+40‚ÑÉ

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar

Dimmable :

On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming

Certificate :

ENEC , TUV-GS , UKCA , CE , RoHS , ERP , ETL , SAA , RCM , CB





IP65 LED panel , waterproof LED panel light , over 100lm/w IP65 LED panels , LED ceiling panel IP65 , high-quality edge-lit IP65 LED panels , 600x600mm IP65 LED panel lights .

ENEC LED panel



Rohs LED panel

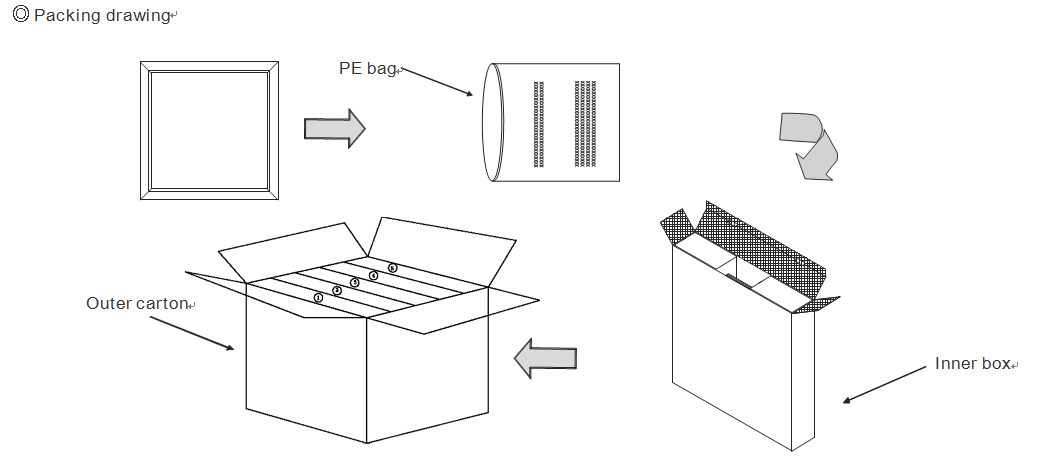

Package

Carton Size : 65x25x69cm , 5units/ctn. ( Contain inner box )

UKCA LED panel

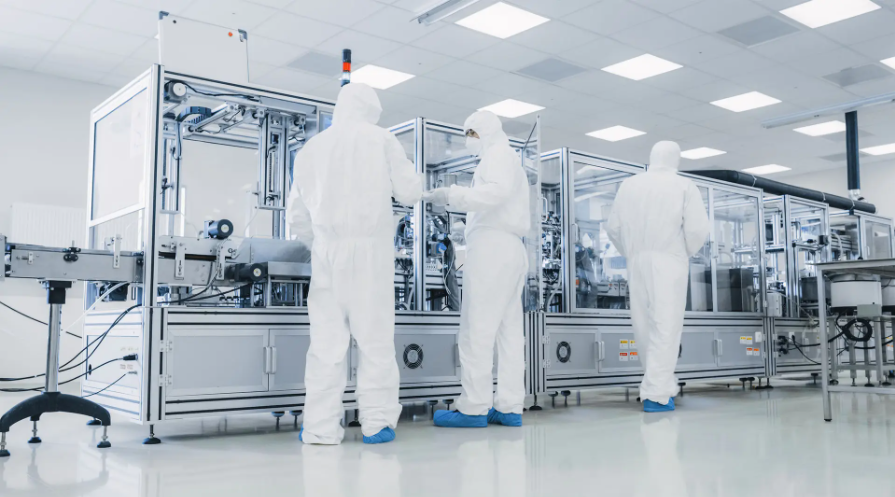

Applications

Hospital , Swimming pool , LED chips manufacturing base , Bathroom , Foyer , Office , Meeting room , Shop , Retail , Super market , Corridor , Spray booth , operating room ,etc .
