- UGR<16
- High light efficiency output >130lm/w
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0

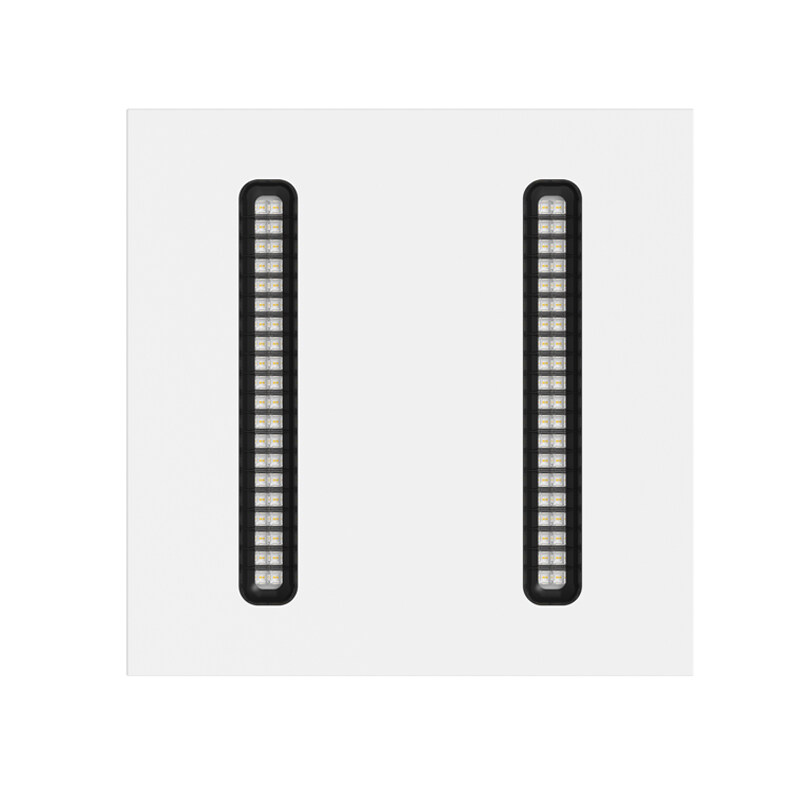

Product Details
Glare protection less than 16, even less than 14. High light efficienct output over 130lm/w.
Wide range applications for high ceilings, airport, offices, working spaces.
Sample for quality testing is acceptable , fast delivery within 20 days for the bulk orders .
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|
Dimension : |
595mmx595mmxH25mm |
| LED Chip : | San'an / Philips / Osram (option) |
|
Norminal Power : |
30W |
|
Luminous Flux (LM) : |
130lm/w |
|
CCT : |
2700K / 3000K / 4000K / 5000K / 6500K |
|
CRI : |
Ra>80 |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<16 |
|
Materials : |
Aluminum frame , PMMA |
|
IP Rating : |
IP40 |
|
Lifetime : |
50000H (L90B10) |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed/ Surface mounting/Suspending |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , CB, SAA, RCM |

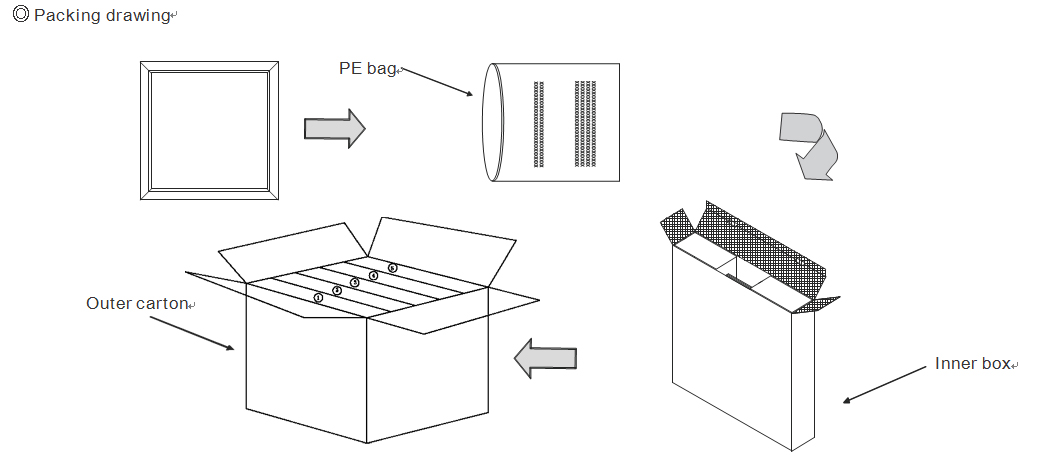

Package
Carton Size : 66x23x66cm , 5units/ctn. ( Contain inner box )

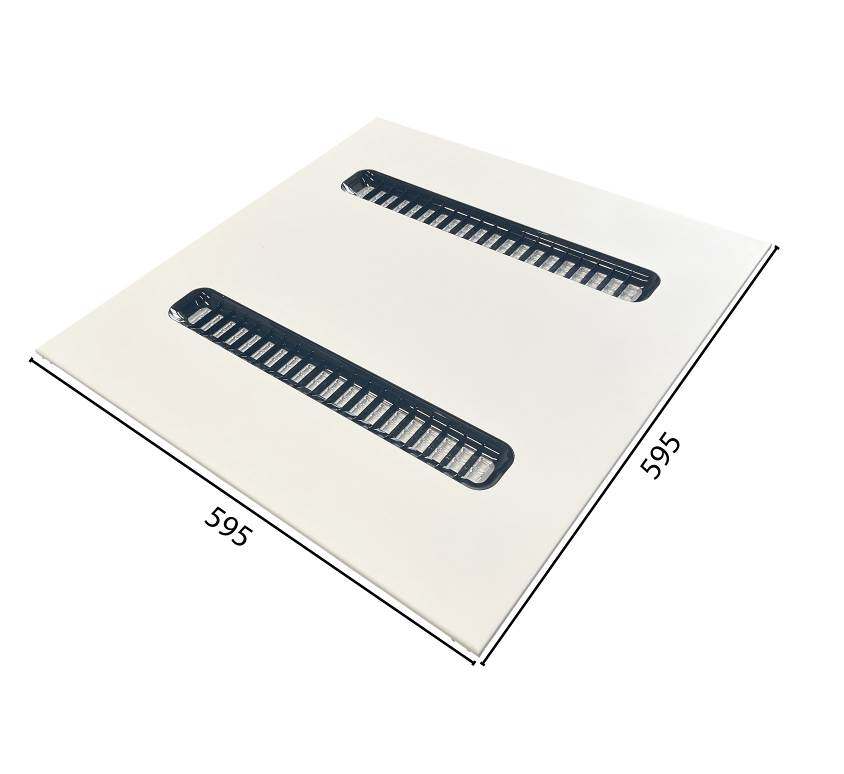

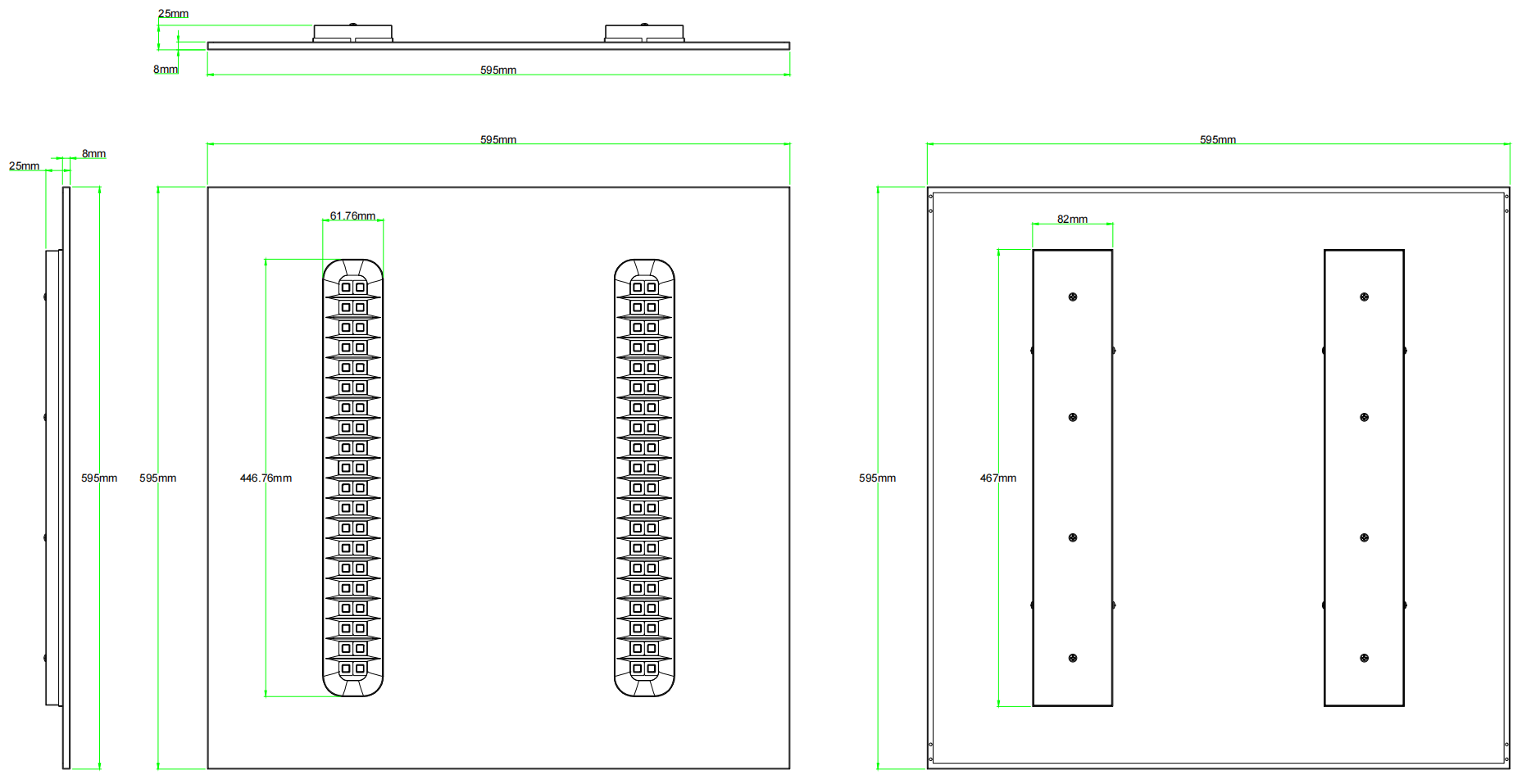

Dimensions

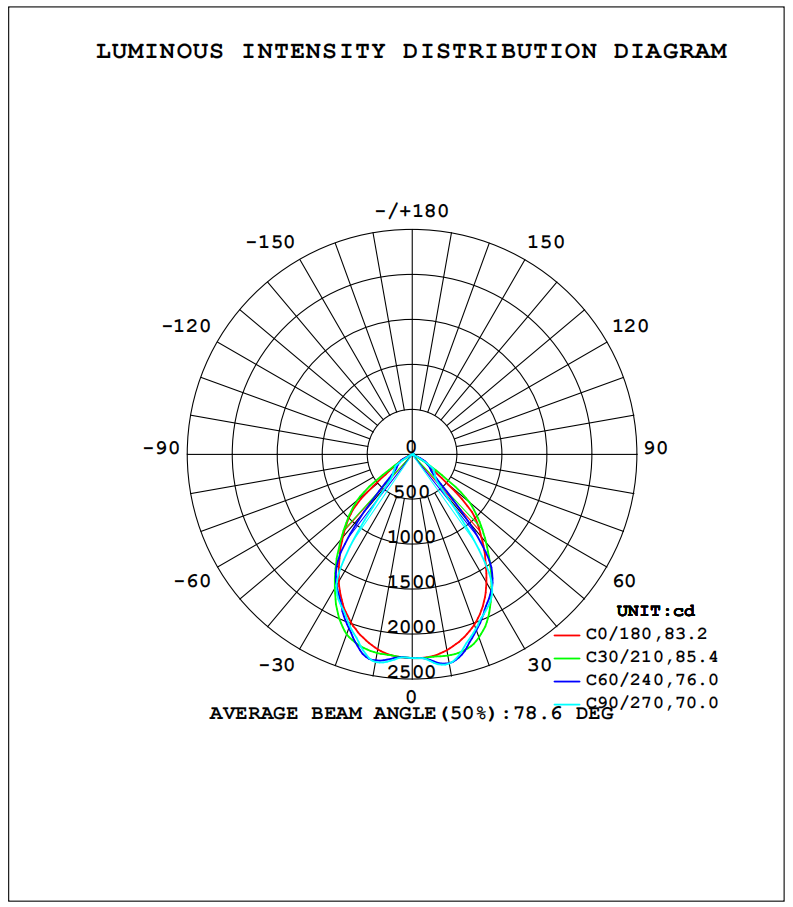

Photometric
Applications
School, Office, Education areas, Meeting room, Shop, Retail, Supermarket, Corridor, Bank, Reception areas, Residential , etc .
