- IP20
- Suitable for Class II light fixtures
- Constant current output. The output current can be adjusted via the DIP switch
- Built-in active PFC function
- Standby power consumption is less than 0.5W
- 0-10//PWM/Rx dimming function
- 5-year warranty (Please refer to the warranty condition.)
LF-AAA012B0400-42 is a 12W constant current flicker free LED driver. It has 0-10V/PWM/Rx dimming functions. The input voltage is 220-240Vac. The output current can be adjusted via the DIP switch from 150mA to 400mA, 50mA a step.
Applications
- Indoor office lighting
- Decorative lighting
- Commercial lighting
- Residential lighting

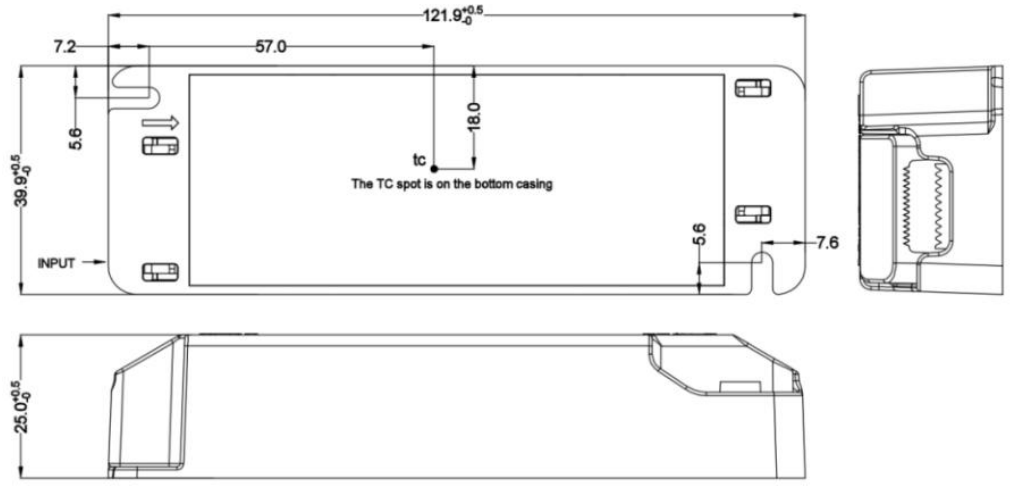

Structure & Dimensions (unit: mm)

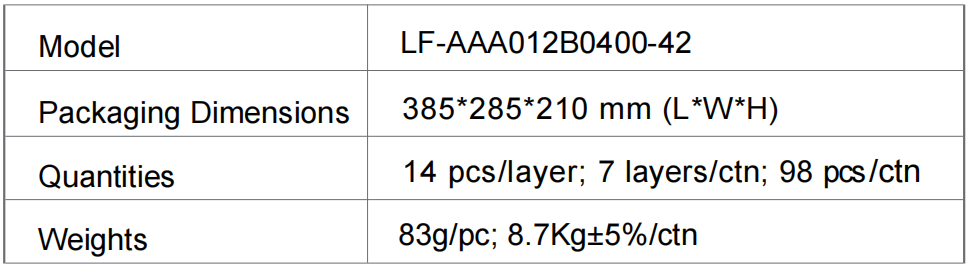

Packaging Specifications
