- Sky printing
- 100% PMMA non-yellowing light guide
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0
Product Details

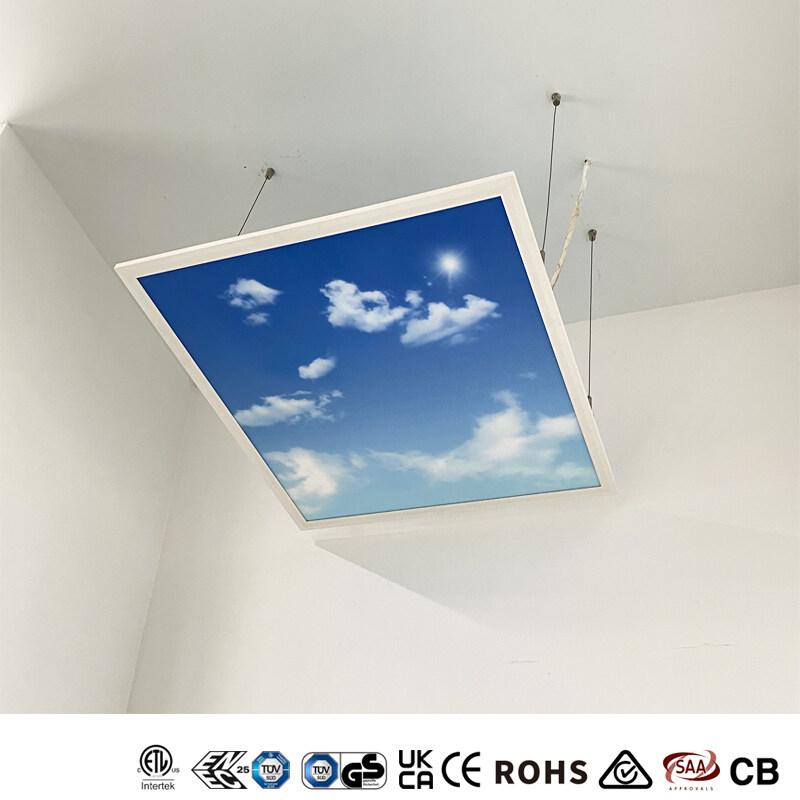

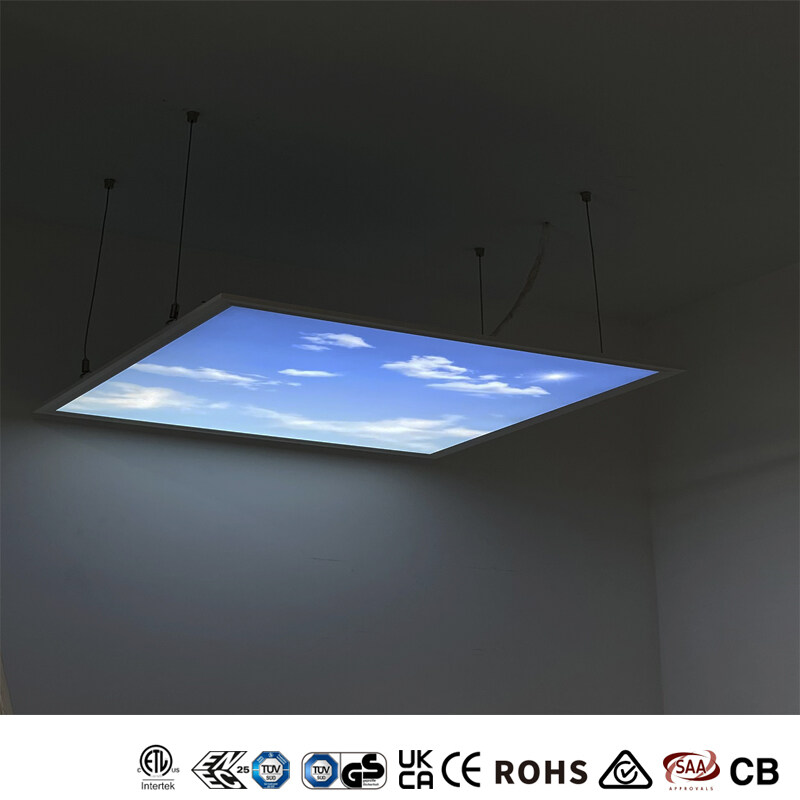

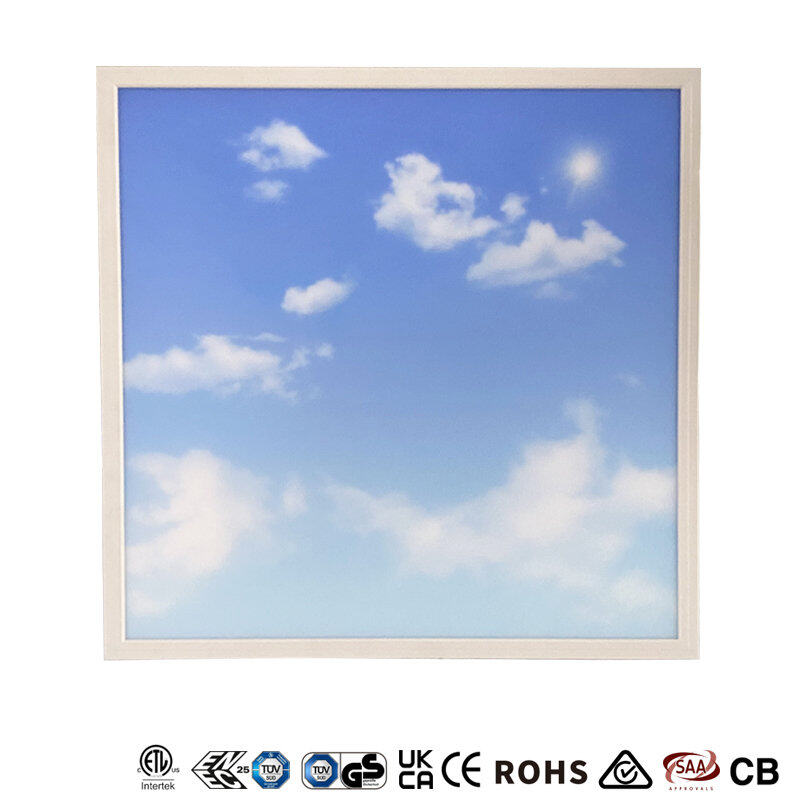

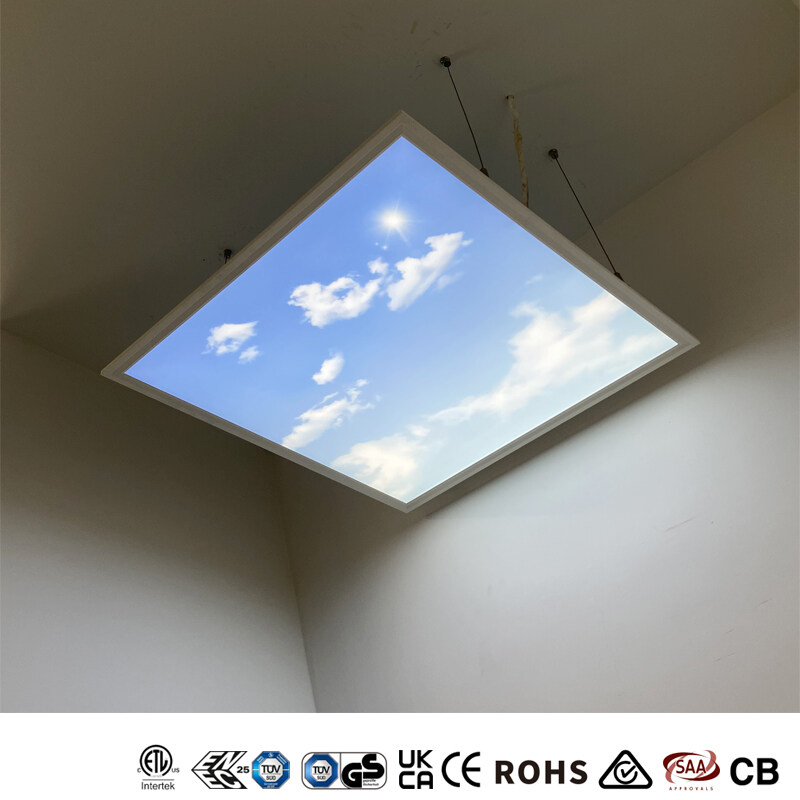

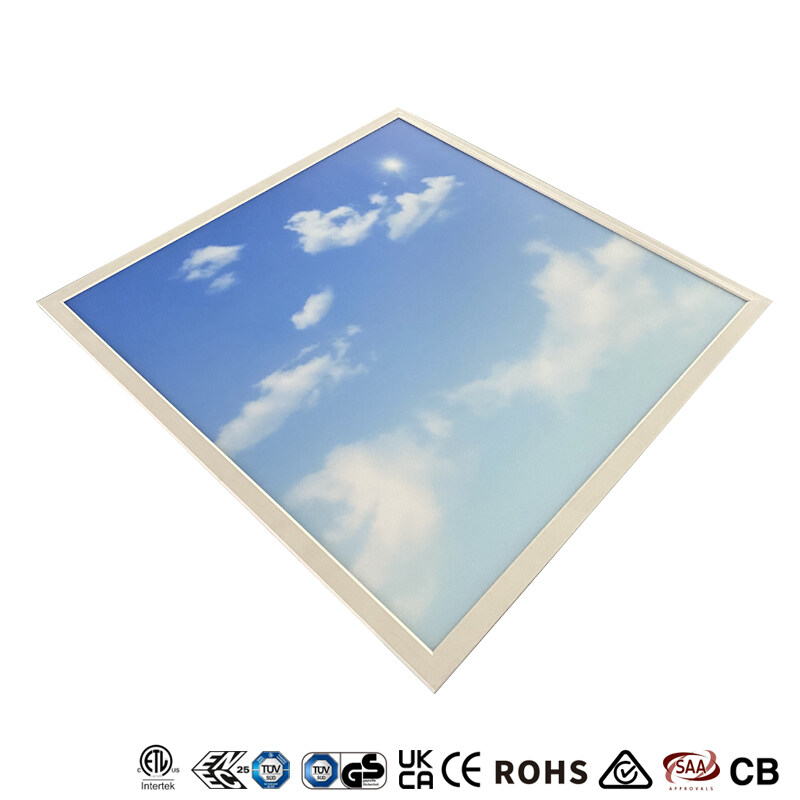

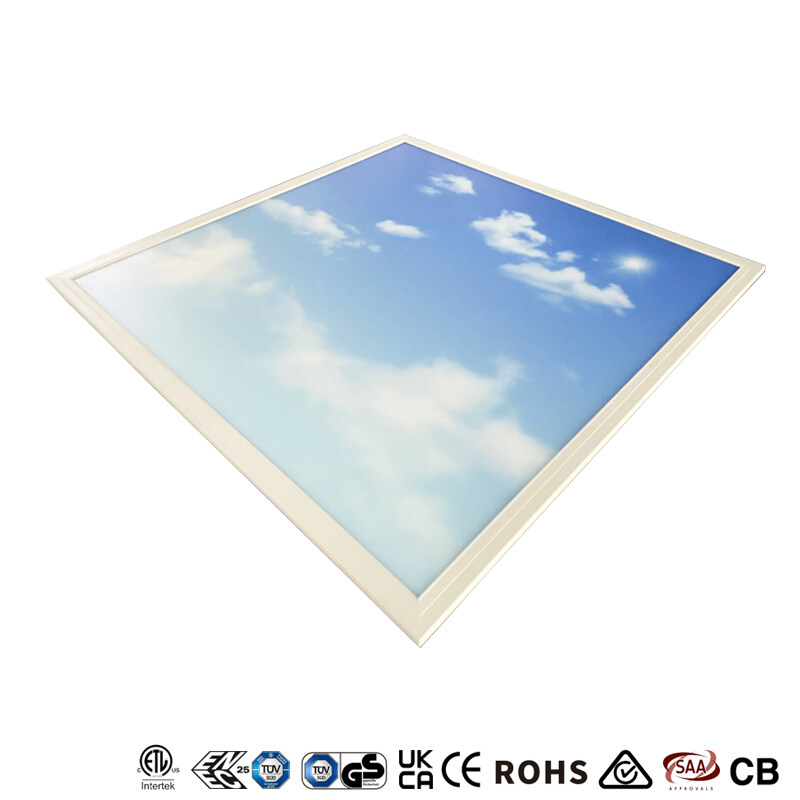

Sky printing , pattern is optional and customization , welcome to send us your interested images . The sky led panel light is visually and attractive for the commercial building , interior office and the big shopping mall .
Ultra thin and flat design . 100% non-yellowing PMMA light guide plate . High power factor over 90% no flickering driver . White , black or silver finish aluminum frame , rustless back cover . Excellent heat dissipation performance . Long life span over 50000H , 5 years warranty , perfectly reducing the maintenance . With advanced SMD LED technology edge lit LED panels , high color rendering index value over 80 , makes everything in the space more natural . Easy and quick installation , suitable for recessed , suspending and surface mounting with relevant accessories optional . Energy saving and reliable LED panels .
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|
Dimension : |
595x595x9mm |
| LED Chip : | San'an / Philips / Osram (option) |
|
Norminal Power : |
36W |
|
Luminous Flux (LM) : |
80lm/w |
|
CCT : |
2700K/3000K/4000K/5000K/6000K/6500K/ tunable white 2700K-6500K (option) |
|
CRI : |
Ra>80/90/95/full spectrum (option) |
|
Driver : |
Lifud / Philips / Boke / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<23 |
|
Materials : |
Aluminum frame , PMMA LGP |
|
IP Rated : |
IP40 / IP44 / IP54 / IP65 (option) |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40℃ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ErP , SAA , RCM , CB |

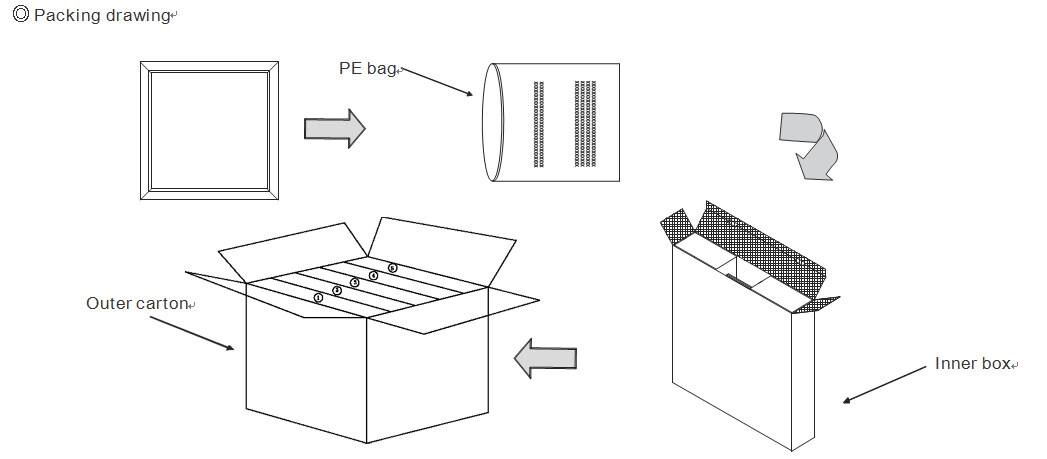

Package
Carton Sizes : 63*20*67.5 cm , 5units/ctn. ( Contain inner box )

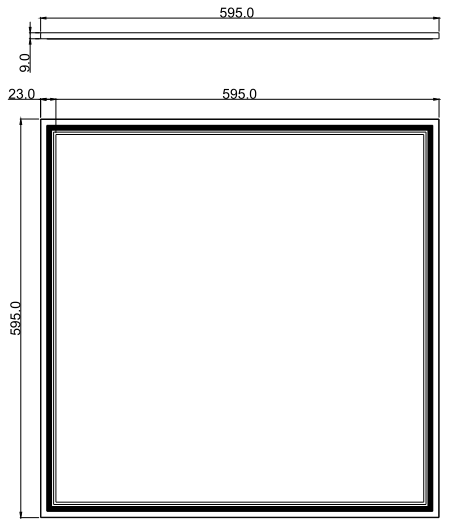

Dimensions
Ultra flat and slim design
Different images can be optional

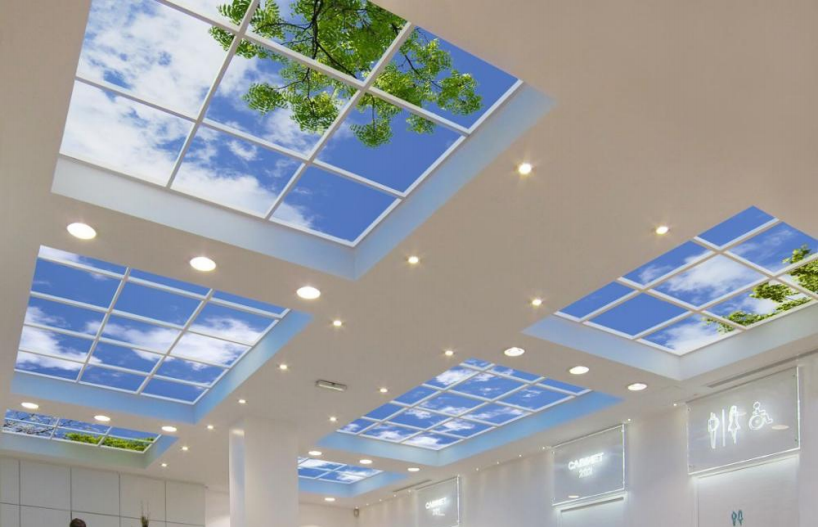

Applications
Shopping Mall , Meeting room , Supermarket , Reception areas , Office , Public areas , etc .
