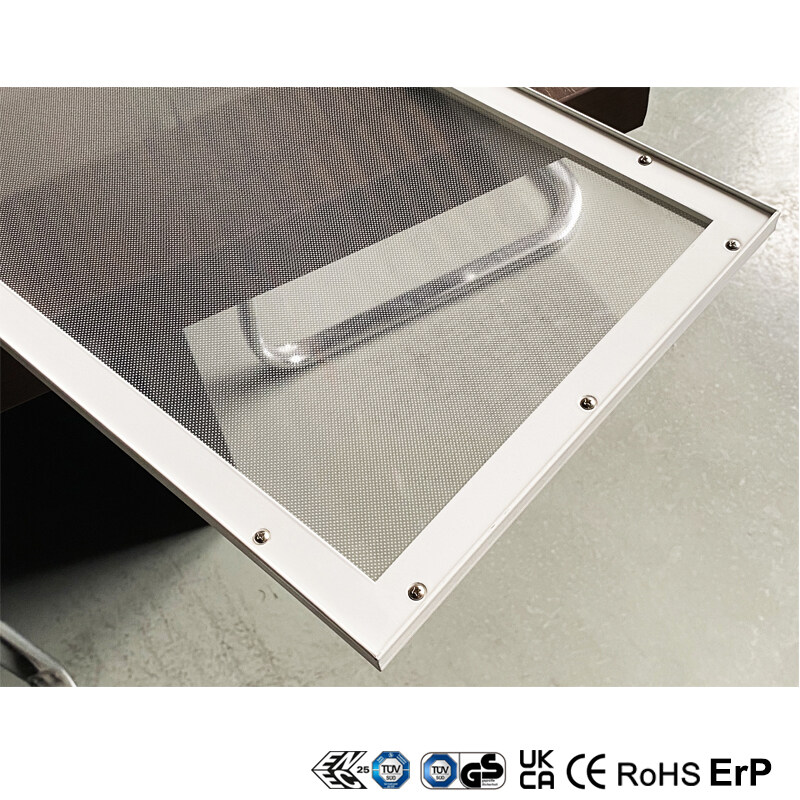

Transparent Double-side Light Up/Down LED Panel 1200x300

Model: S-PL1203-T

- Transparent design , only PMMA non-yellowing LGP
- High light efficiency output over 100lm/w

- Super slim and flat design
- Available for suspending mounting
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0

Product Details

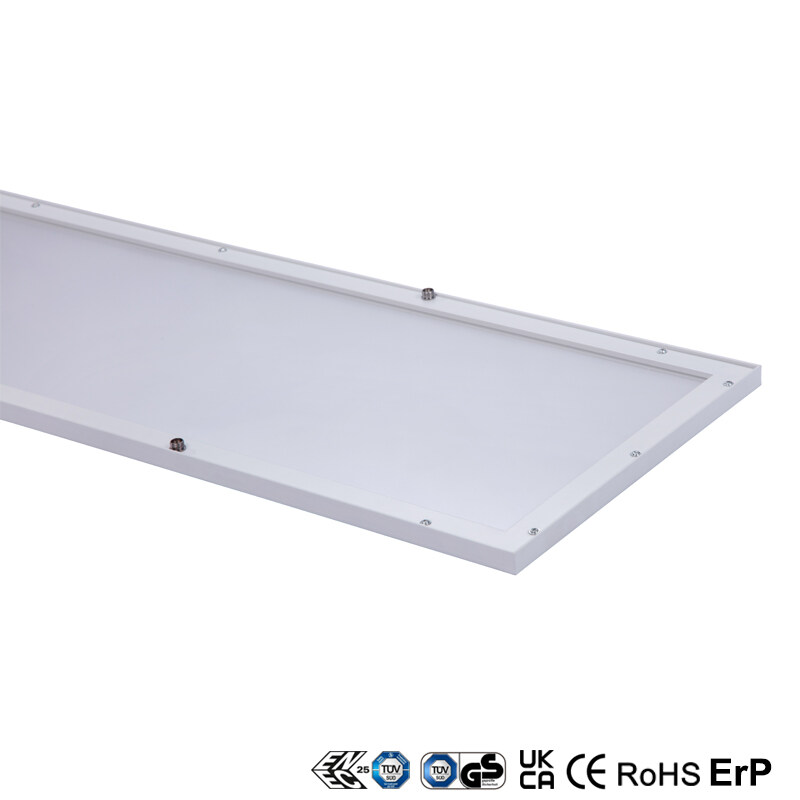

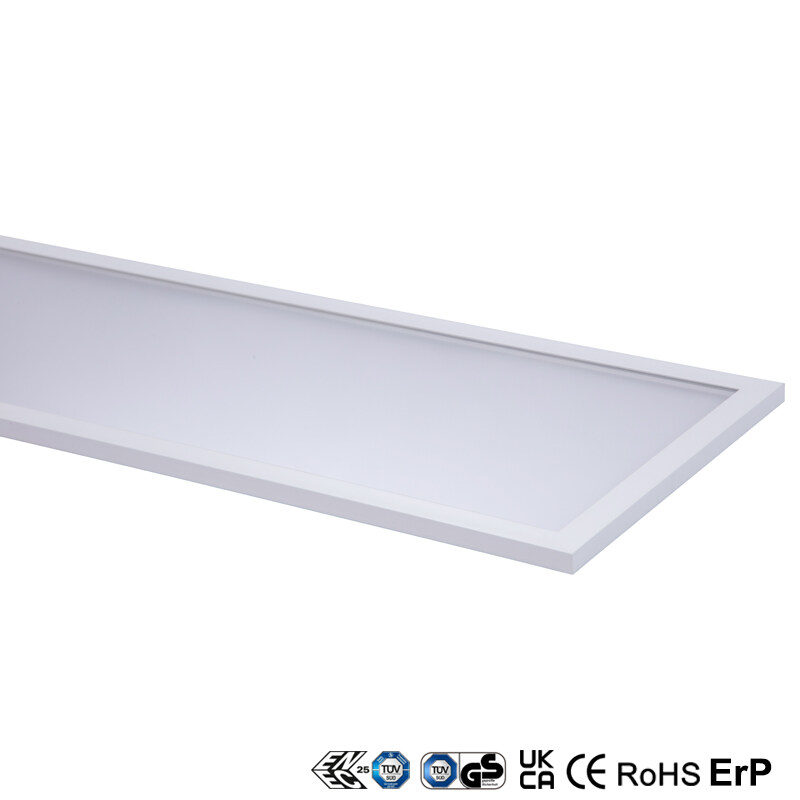

The up/down rectangle LED panel , 1200x300mm , 40W , high light efficiency >100lm/w . With 100% PMMA non-yellowing light guide , without dark areas or spots on the panel . Matte white RAL9016 finish aluminum frame , only 14.5mm thin . High brightness and soft lighting , 80% energy saving .

Super slim and flat design , this transparent flexible LED panel is more attractive for the office , meeting room , reception area , residential , and other commercial spaces .

Standard LED driver , power factor over 0.95 , flicker free . It does not harm your health and can improve the quality of photos taken with your digital camera or mobile phone .

Fantastic heat dissipation performance . Long lifespan 50000H , this high quality LED panel comes with 5 years warranty , providing a peace of mind when purchasing and afer sales .

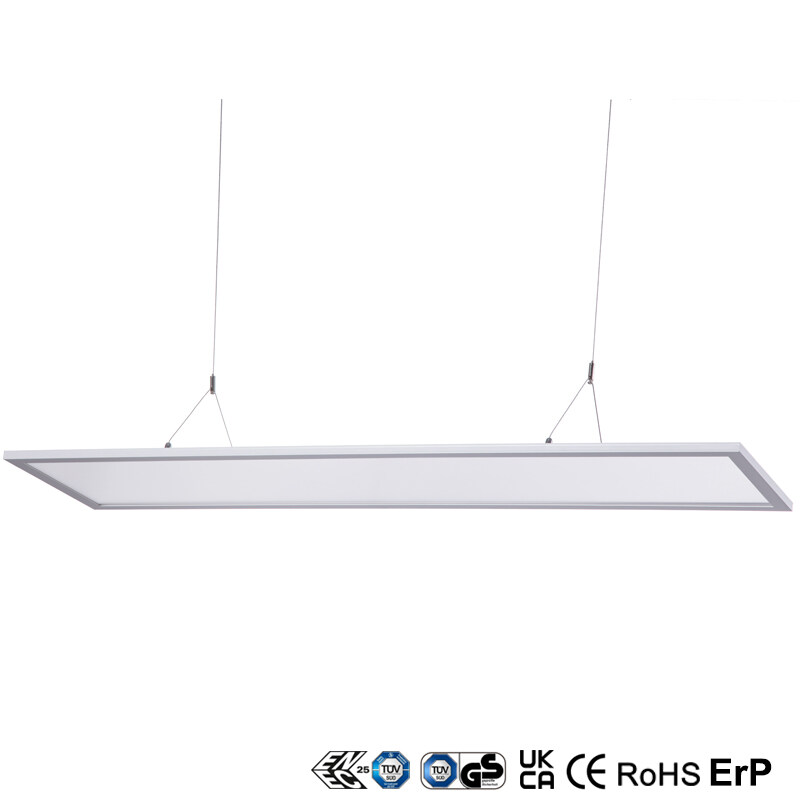

Suspension for installation .

Available for CCT 2700K-6500K , turnable white , RGBCW , with DALI control , 0-10V dimming .

Sample for quality testing is acceptable , fast delivery within 20 days for the bulk orders .



Specifications

Input Voltage :

AC200V-240V , 50/60Hz

Dimension :

1200mmx300mmxH14.5mm

LED Chip : San'an / Philips / Osram (option)

Norminal Power :

40W

Luminous Flux (LM) :

100lm/w (4000K and 6500K)

CCT :

2700K / 3000K / 4000K / 5000K / 6500K

CRI :

Ra>80

Driver :

Lifud / Philips / Boke / AGT / Osram (option)

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

UGR<23

Materials :

Aluminum frame , PMMA LGP

IP Rating :

IP20

Lifetime :

50000H (L90B10)

Warranty :

5 years

Working Ambient Temp. :

-20~+40‚ÑÉ

Working Ambient Humidity :

10%~90%

Mounting :

Suspending

Dimmable :

On/Off  / Push / Triac / 0-10V / 1-10V / DALI dimming

Certificate :

ENEC , TUV-GS , UKCA , CE , RoHS

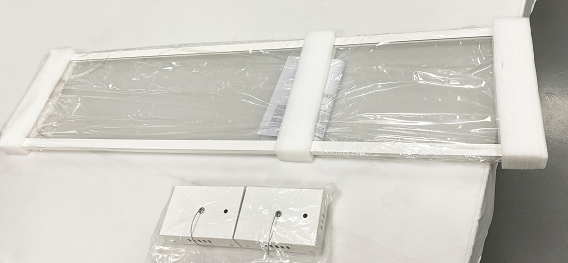

Package

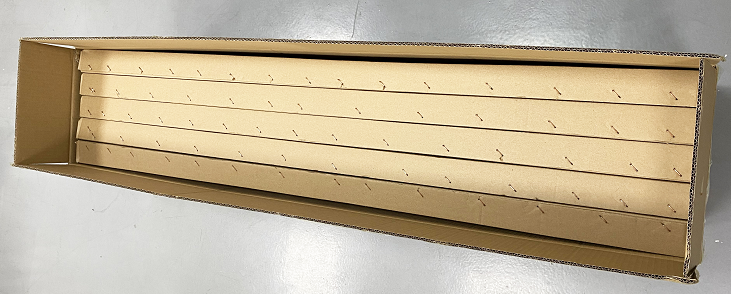

Carton Size : 136x29.5x36cm , 5units/ctn. ( Contain inner box )

led panel light 1200x300

made in China LED panel light

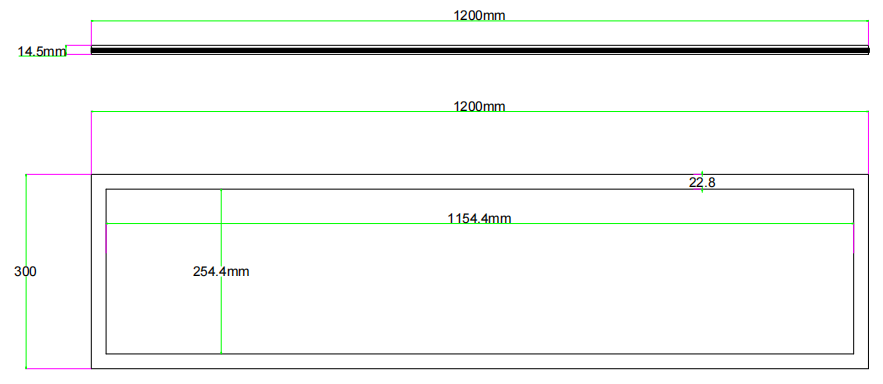

Dimensions

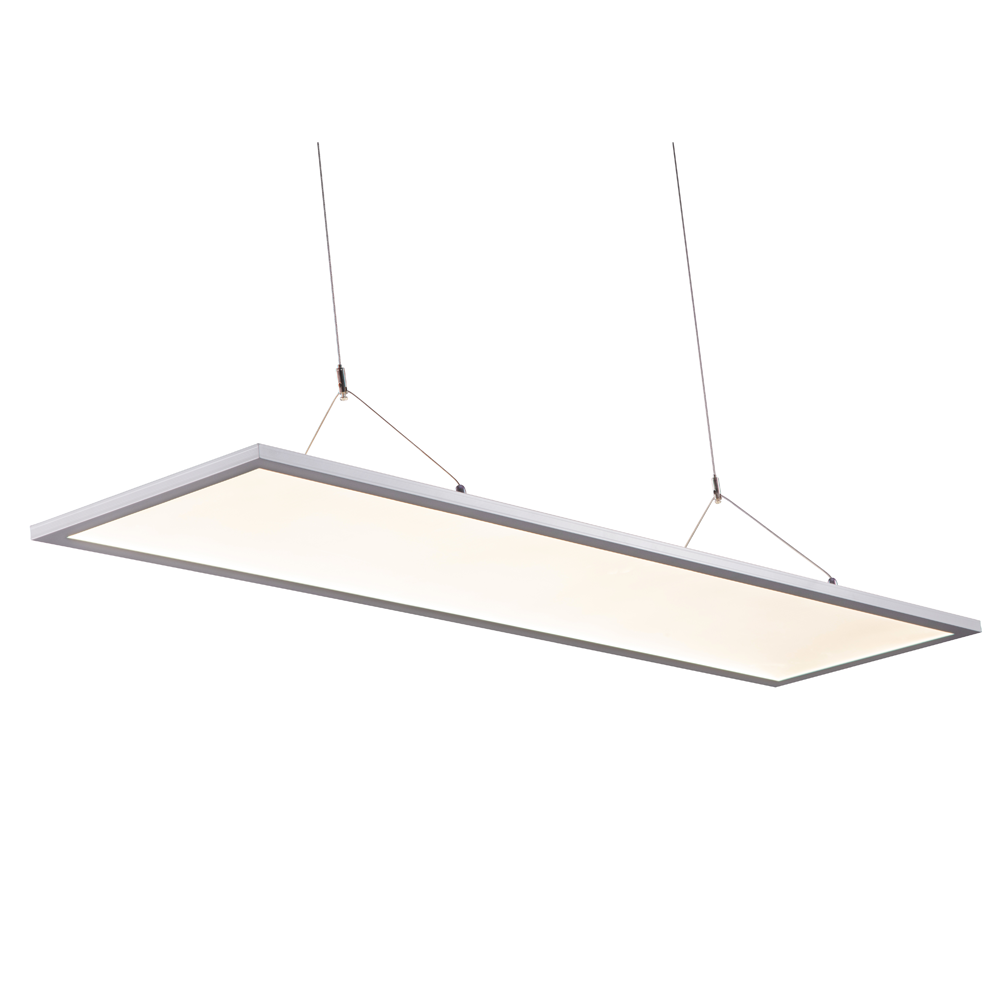

Ultra flat and slim design



      LED panel light factory



LED panel manufacture

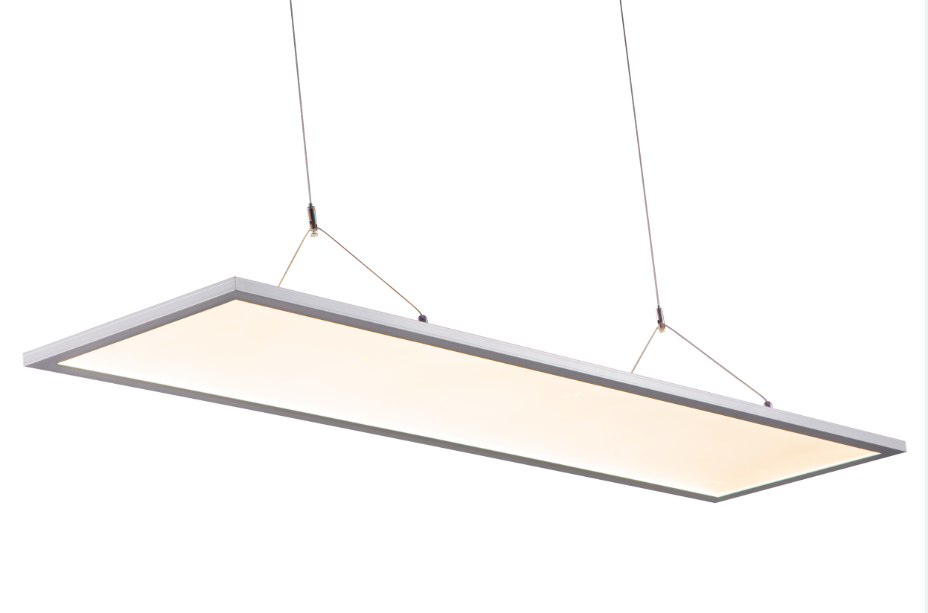

Photometric

China LED panel supplier

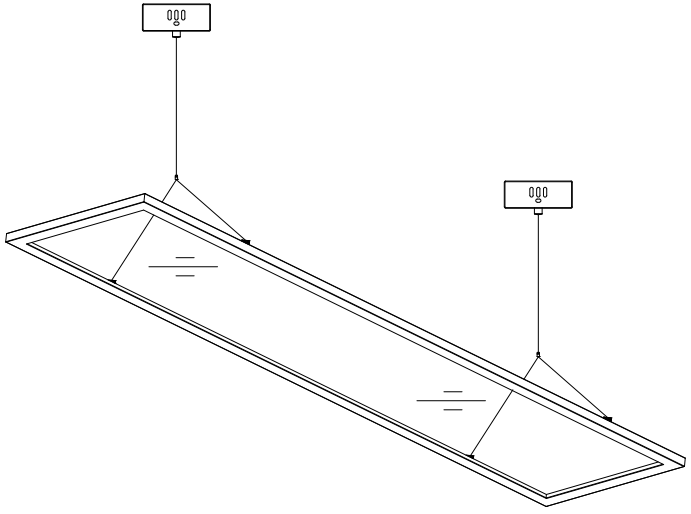

Installation Method:

Suspending mounting

led panel lights china supplier

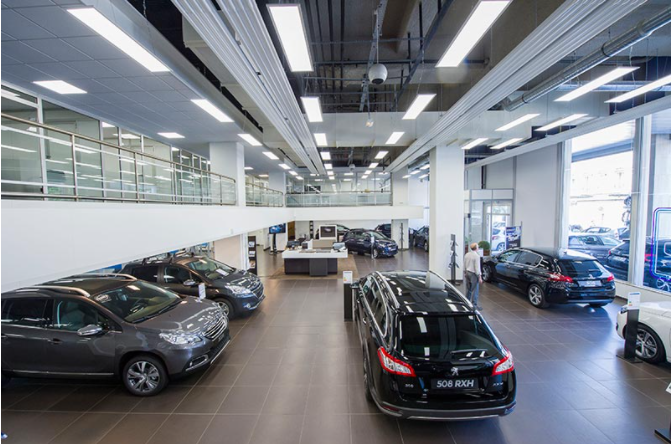

Applications

School, Office, Education areas, Meeting room, Shop, Retail, Supermarket, Corridor, Bank, Reception areas, Residential , etc .
