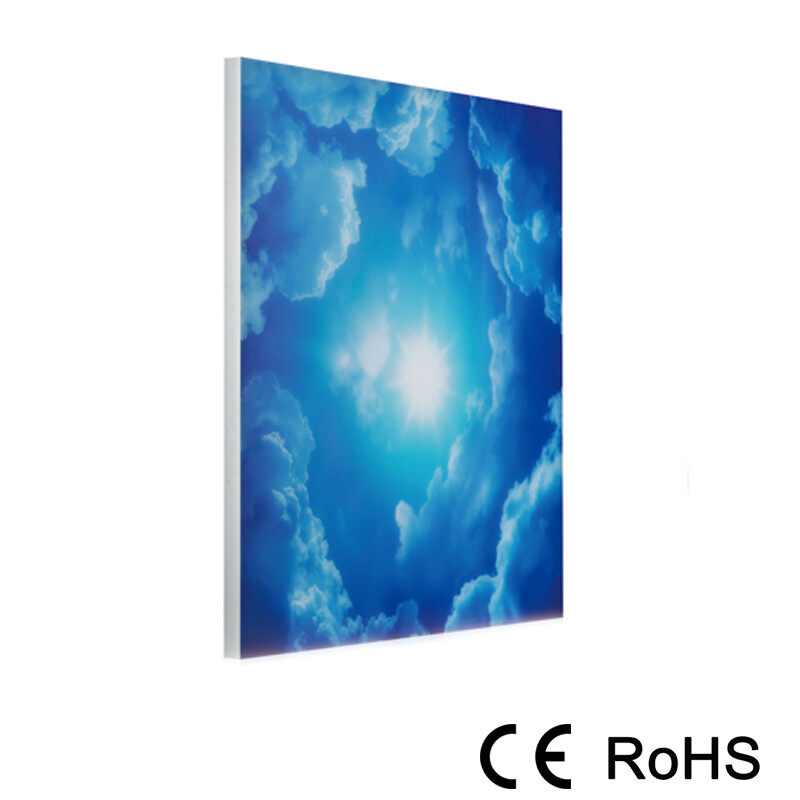

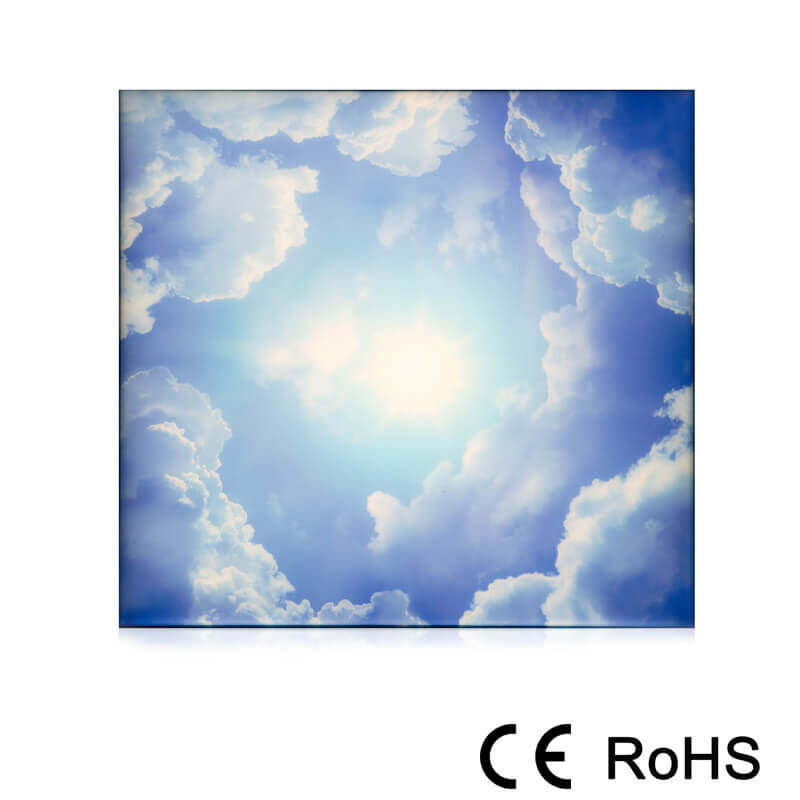

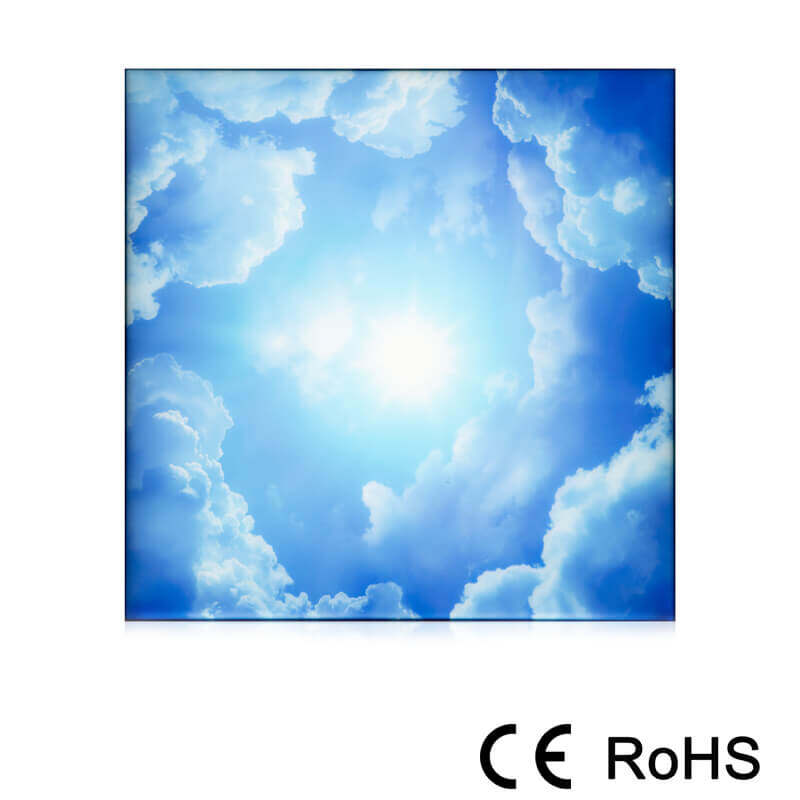

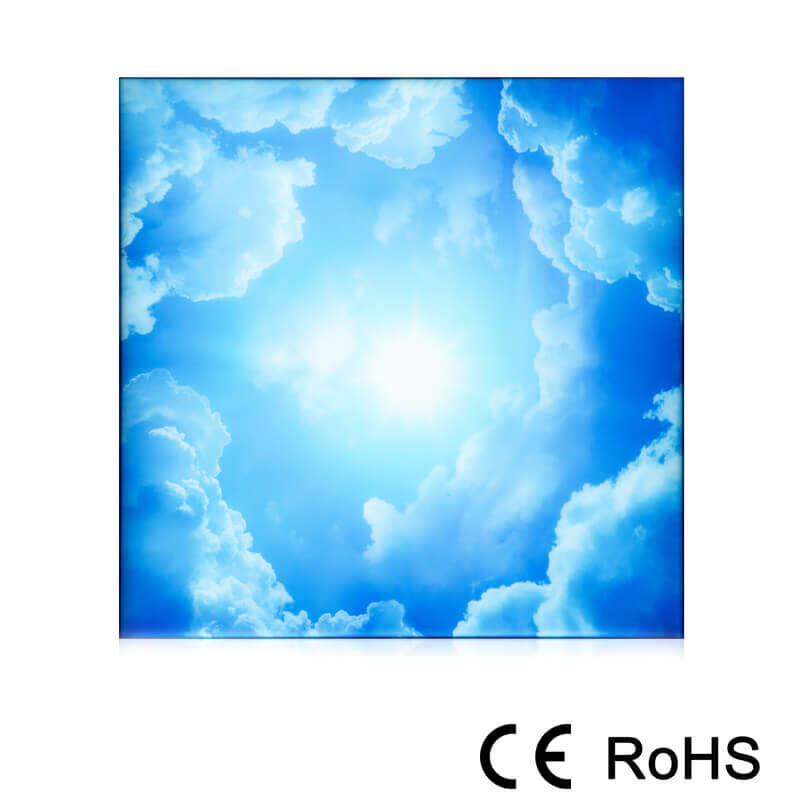

Frameless Sky LED Panel

Model: S-PL0606-4080-FS

- Different images printing acceptable

- High bright LM-80 listed SMD4014 LED chips

- High-end PMMA nanometer LGP

- No shadow, no dark area

- Frameless modelling, novel in shape

- Dimmable solutions support Triac, 0-10V /1-10V,

  DALI dimming optional ,tunable white adjusted

  by DALI control DT8 or remote control

- RG0

Product Details

Feature architectural LED lighting , with sky printing , not only sky patterns , other patterns are available to sent us to printing on the panels .

Tunable white , dimmable , RGBCW and other customized functions are available on your request .

The maximum size for one panel can be made 2.4m by 1.2m , you are able to make countless panels to splice into different patterns you require . For the patterns , we use spray technology instead of the soft membrane to improve the quality and guarantee more than 5 years not easily deteriorate . With DALI DT8 controller to adjust different color temperatures and dimmable according to your applicating scenes .

Compliant with CE and Rohs certificate .

Sample is available for you to test , and with fast delivery within 30 days for the bulk orders .



Specifications

Input Voltage :

AC200V-240V , 50/60Hz

Dimension :

595x595x23mm

LED Chip :  San'an / Philips / Osram (option)

Norminal Power :

40W

Luminous Flux (LM) :

80lm/w

CCT :

2700K/3000K/4000K/6000K/6500K/ tunable white 2700K-6500K (option)

CRI :

Ra>80/90/95/full spectrum

Driver :

DALI DT6 / DALI DT8 / Remote control

Power Factor :

PF>0.9

UGR(Unified Glare Rating) :

UGR<23

Materials :

Aluminum frame , PMMA LGP

IP Rated :

IP20

Lifetime :

50000H

Warranty :

5 years

Working Ambient Temp. :

-20~+40℃

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted

Dimmable :

On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming

Certificate :

CE , RoHS

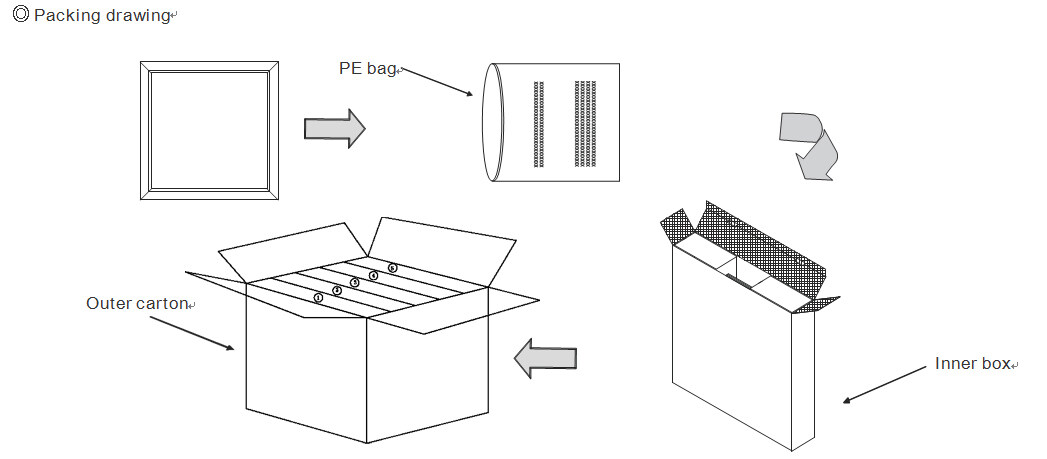

Package

Carton Size : 79x72x39cm , 5units/ctn. (contain inner box)

led panel light 595x595mm

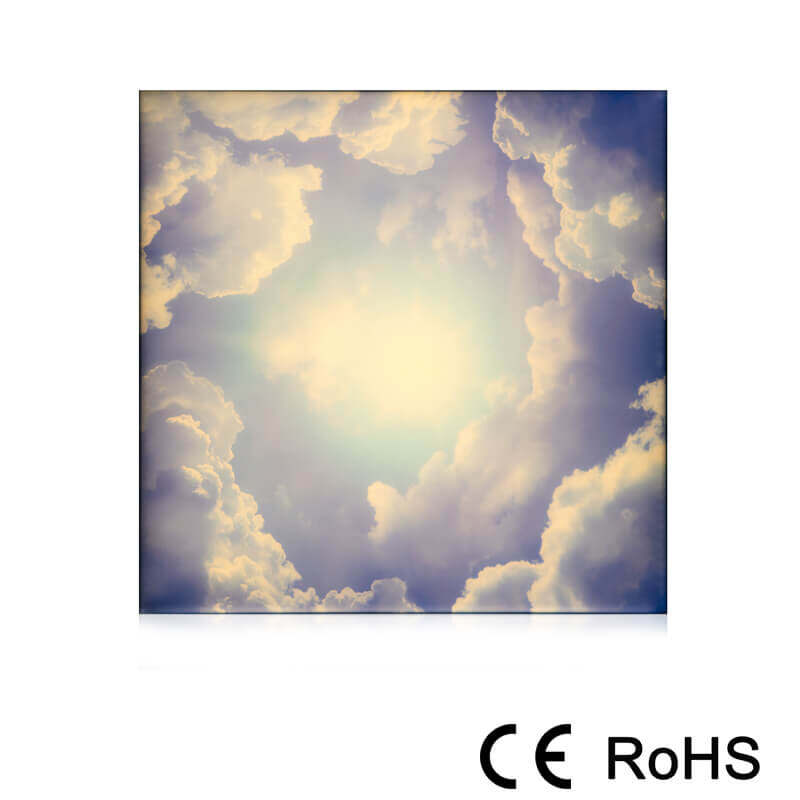

Different images can be optional





Applications

Shopping Mall , Meeting room , Supermarket , Reception areas , Office , Public areas , etc .
